Commercial Foam Play Block Density: EPE/EVA Selection, Compression, Covers, and Service Life

Updated October 2026

Commercial foam play block density measures the mass of foam in a given volume and is used to identify a core. Density alone cannot establish how firm a covered block feels, how much weight it can support, or how long it will last. A useful purchase specification pairs density with material grade, compression data, construction and cover care instructions.

This safe buying guide helps procurement teams compare foam climbing blocks beyond a high-density label. One supplier may describe a raw sheet; the other may describe a layered core in a tight cover. Prior to buying foam blocks, verify what was measured. Five buying checks cover the core, test conditions, assembly, replacement parts, and operating cost.

What commercial foam play block density actually measures

Foam density refers to the mass per unit volume and is expressed as kilograms per cubic meter or pounds per cubic foot. Density defines one property of a material. Firmness refers to resistance to indentation or compression. Thus, two cores of the same density can feel different and may require a different force to be deformed the same way.

“Firmness is independent of foam density”

In case of flexible polyurethane foam, ask whether total density or polymer density is being described. Filler in polyurethane foam contributes to total mass; polymer density excludes that filler. A higher total number alone doesn’t establish more polymer, better support or longer service. Equally, a filler description alone doesn’t establish that the material is unsuitable.

How can the density of foam be measured effectively?

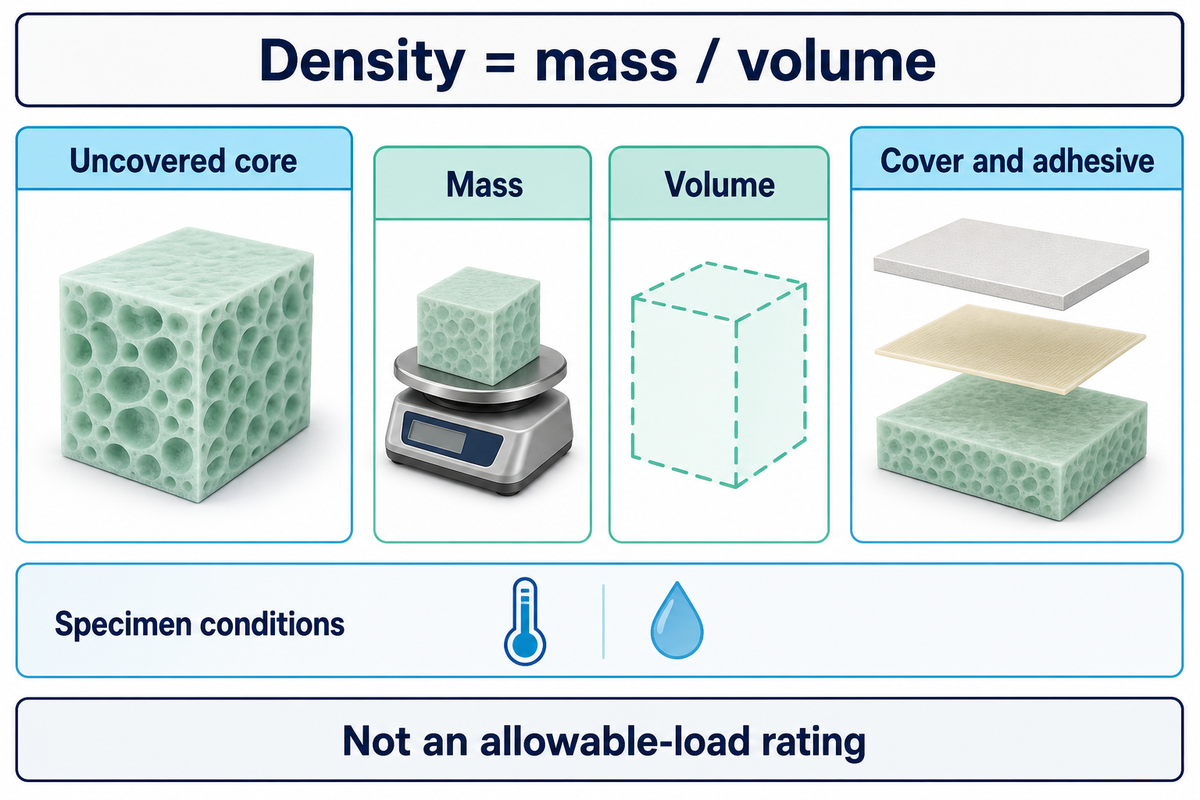

To obtain a value for density, the mass of the sample is measured, and the volume is determined. Density = mass / volume. Specimens and conditions must be specified. The procurement check can use the uncovered core or a material sample. Weighing the cover and adhesive with the core gives a different measured value and can’t validate a quoted raw-foam density.

For example, a sample in the shape of an uncovered rectangular core of 0.4m x 0.4m x 0.2m has a volume of 0.032 m³. Assuming a density of 30 kg/m³, its mass would be 0.96 kg. This example doesn’t address a permitted child weight. Rounded corners, cut-outs and different layers require an appropriate volume calculation or specimen method.

It should also be clarified if a manufacturing skin is included. The public abstract for ISO 845:2006, apparent density of cellular plastics and rubbers, distinguishes core and overall density when manufacturing skins are present. A sewn outer cover is not that manufacturing skin.

Compare EPE, EVA and polyurethane foam cores

EPE, EVA and flexible polyurethane foam should be differentiated by named grade and construction, and not by a general density. The family of materials serves to narrow the questions, and measuring its mechanical and physical properties serves to determine what a sample is able to demonstrate. Supplier values illustrate the case, and aren’t Didi Land specifications or approved play-block limits.

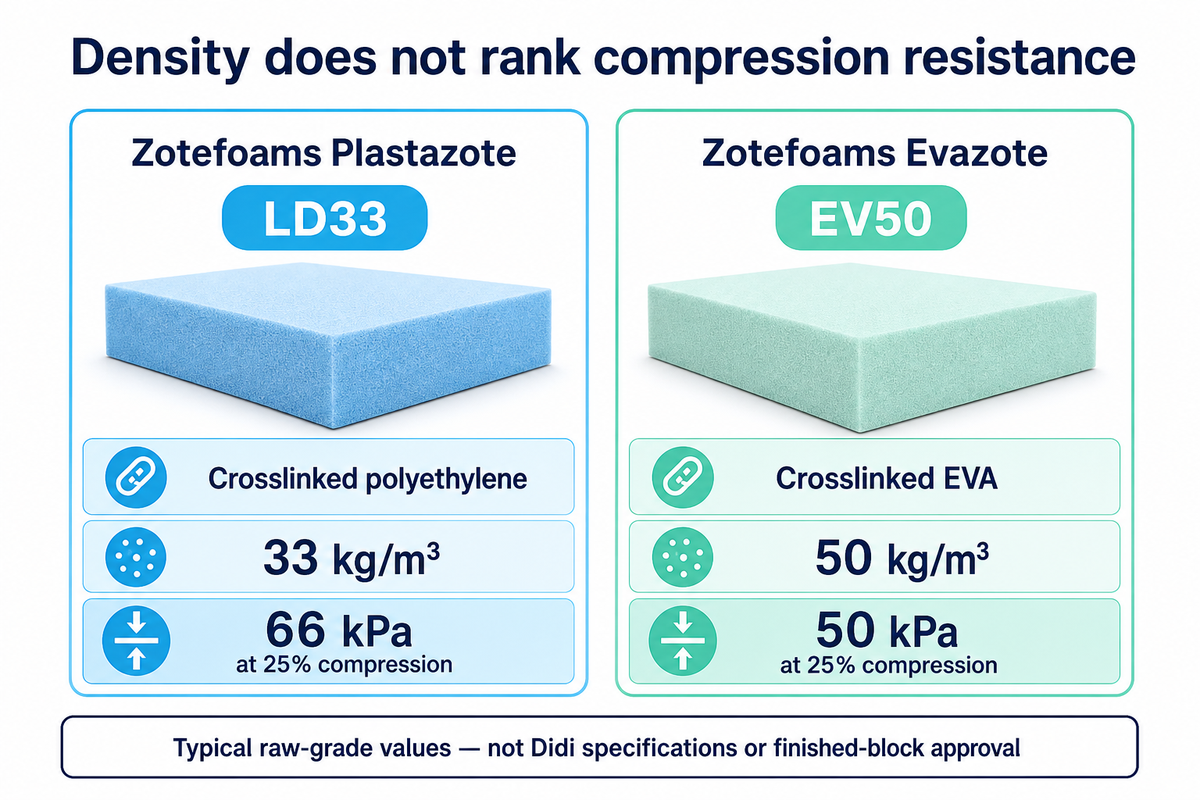

Consider two published grades: crosslinked polyethylene LD33 has a nominal density of 33 kg/m³ and a listed compression stress of 66 kPa at 25% compression. Crosslinked EVA EV50 is denser at 50 kg/m³, yet its corresponding listed stress is lower, at 50 kPa. The denser grade is therefore not the more compression-resistant of these two examples at that deformation.

Both examples cite typical or representative values; not acceptance limits for purchase. Also, they aren’t the same formulations, making this not a controlled experiment that shows one polymer family is better than the other. Request the actual grade offered for your commercial foam play equipment and assess its report to the approved sample.

A statement by the supplier “made from high-density polyurethane foam” or “shape-retaining foam” doesn’t answer the question regarding the firmness or fatigue behavior of the finished core. Likewise, the type of foam is important to the finished core response. The most helpful next step is a test record not another adjective.

Read compression and recovery results on the same basis

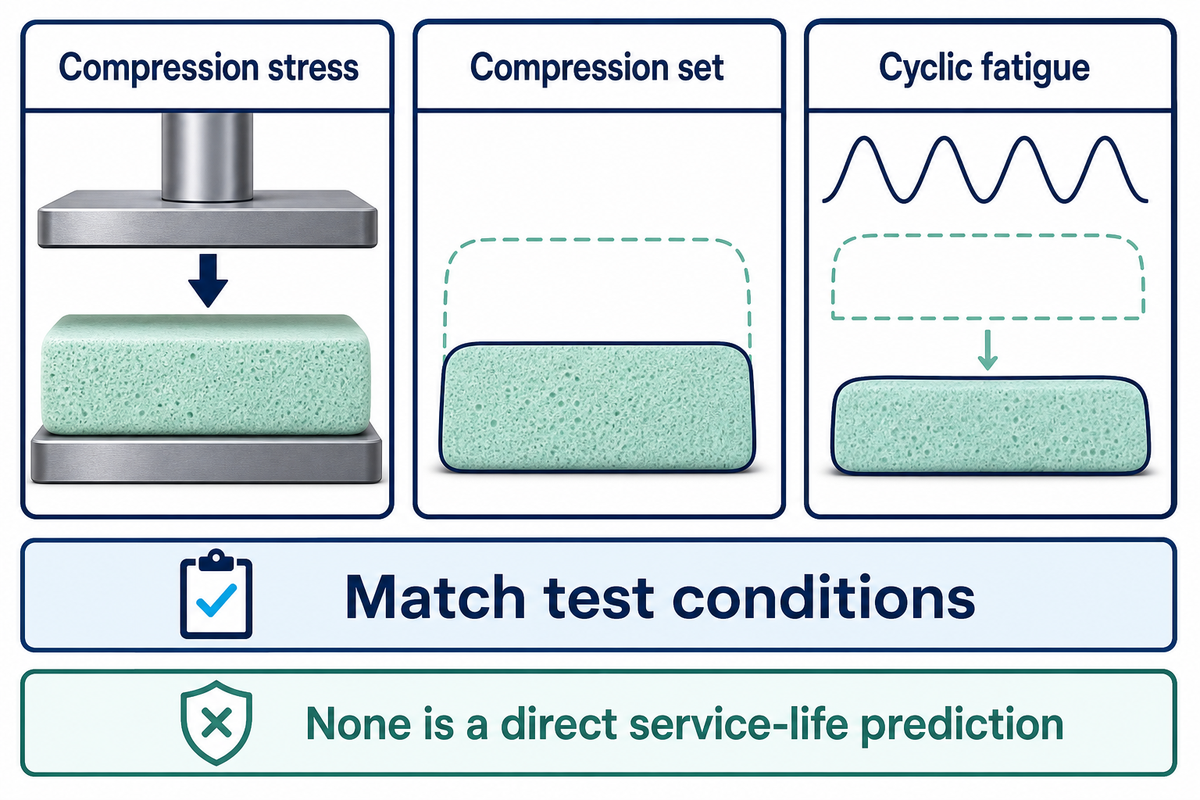

Results from compression tests are comparable only when properties, specimens, methods and conditions match. Compression stress is the resistance at a stated deformation; compression set is the residual deformation after loading and recovery; and cyclic fatigue is the change after a number of load cycles. They aren’t equivalent to the number of years of commercial use.

The ASTM D3574-25 public scope applies to flexible polyurethane foam; ASTM D3575-20 applies to flexible closed-cell olefins. Choose the proper method and edition with the supplier or lab. Older methods and editions of reports do not become automatically invalid. Their reasoning must be clear.

Foam Test Comparison Record

Examples are from Zotefoams’ public Plastazote LD33 and Evazote EV50 grade sheets, Issue 1, Revision 1, June 2026. These sheets describe raw materials and aren’t examples of tested covered climbing blocks. Keep the identifiers from the sheets and reports and include them with your comparisons.

Imagine a quality manager reviewing two quotations for an indoor play area. The purchasing sheet highlights 33 kg/m³ versus 50 kg/m³, and the second vendor asks for a premium. A quick decision would buy the bigger number. The manager instead asks which result supports the promised feel. At 25% compression, the two example grades show 66 kPa and 50 kPa, reversing the expected ranking. The manager then notices that the attractive 2% set result used a different compression level from the 4% result. The decision is to request comparable tests on the proposed cores and assess the finished samples. Neither quotation earns approval from its density number alone.

For flexible PU, the association also distinguishes 25% indentation force from deeper 65% indentation force. The ratio describes support factor. The distinction helps describe surface feel and deeper support, and isn’t a children’s load rating or a finished-product assessment.

Specify each layer in a covered foam block

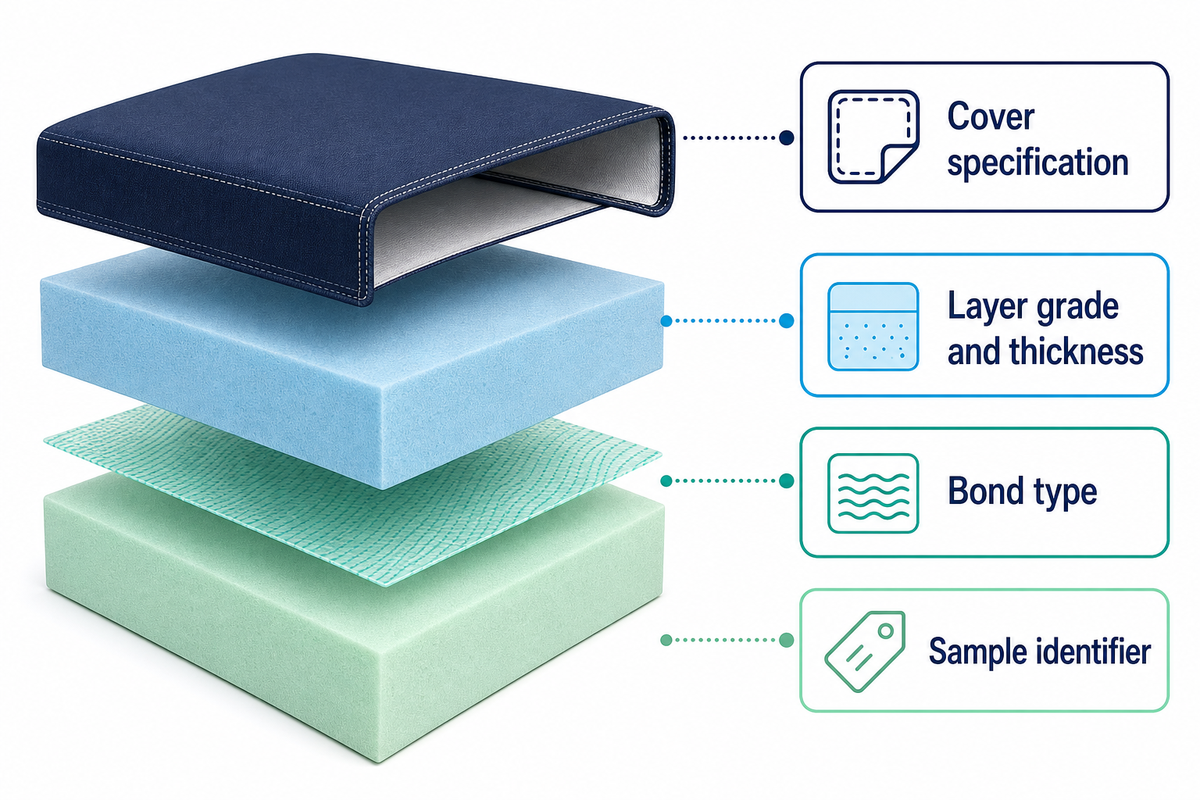

A layered foam core must be described layer by layer because one average density can mask variations in thickness and composition. Obtain the grade and thickness of each layer, the type of bond, and the cover specification. Note if the block uses one homogeneous core. There’s no standard layer stack that can be included in every order.

A soft foam can respond differently from a one-piece core when it has a firmer inner layer and a softer outer layer, despite the same finished outline. Request a section drawing tied to the sample identifier. Cover tension, seams, and closures must be shown in the drawing; average density can’t describe them. The supplier making the blocks should identify their construction in the approved record.

Distinguish the levels of evidence. For applicable US safety regulations, the CPSC component-part testing guidance allows certain chemical requirements to be assessed at the component level, while some mechanical requirements call for finished-product testing. A chemical report on a cover doesn’t establish the performance of the mechanical integrity of the block. Product classification comes first: the CPSC’s toy guidance excludes playground equipment from its toy definition.

Separate design decisions must be documented for individual blocks, support for climbing, and surrounding surfacing. For this, refer to the more detailed document on foam climbing blocks. A core density result can’t replace the site’s floor mat thickness and surfacing assessment or show that a non-slip underside will adhere to a smooth surface.

A layout that combines climbing blocks with a ball pit requires evidence for each intended use. Movable foam building blocks used for soft climbing and building aren’t automatically equivalent to fixed steps. Discuss soft play climbing equipment as a complete arrangement. Extra play value doesn’t follow from density alone.

Check block covers before committing to a core

Block covers should be chosen with a documented cleaning method and confirmed replacement route. The phrase “covers are removable” describes access; washable describes a care method. Neither word proves that the core can be wetted, or a spare will be available when needed.

How do you properly clean the foam block covers?

Clean block covers as directed for that particular cover and assembled product. Use a cleaner compatible with the product, and follow required label instructions for sanitizing or disinfecting, and contact time. Keep moisture away from components that must remain dry. Machine-washable covers should be treated as such only when the manufacturer allows that method.

The CDC guidance for early care and education settings addresses cleaning before disinfection and suitability of the product for the surface. A hygienic play environment is dependent on the care method and not on the word washable. Do not transfer a chemical recipe from outdoor metal equipment or stuffed toys to a vinyl-covered block.

Consider a toddler room operator placing an order for replacement foam block sets. The team prefers washable covers as staff already run a laundry cycle after closing. The supervisor checks whether “washable” means machine laundering or wiping in place. The written instructions allow covers to be removed, but not machine washing and drying. The plan then changes: staff need to use an approved cleaning method and maintain drying or spare capacity to keep incomplete blocks out of use. A zip opening is useful, but it doesn’t make the existing laundry procedure acceptable. The operator considers the second quote before making the purchase.

When not to buy on a density claim alone

Postpone the purchase when the report identifies a different core from the sample, the supplier can’t explain the compression result quoted, or care instructions conflict with your venue’s procedure. These are unresolved buying questions, and selecting higher density doesn’t resolve them.

Reject an unsupported statement of “foam that won’t sag” as a service-life specification. Request the basis for the statement. Likewise, for “certified high-density foam” the product, test and scope and the issuing authority should be provided; density alone shouldn’t be the basis for the statement. Avoid a bad purchase by tying the paperwork to the actual block, instead of collecting miscellaneous certificates.

A replacement cover is also not the right remedy for a core that a manufacturer states should be withdrawn due to damage or contamination. A cover doesn’t restore a core. Agree on withdrawal and replacement instructions and keep a damaged or incomplete assembly out of the play area while its disposition is decided.

Turn sample approval into a repeat-order specification

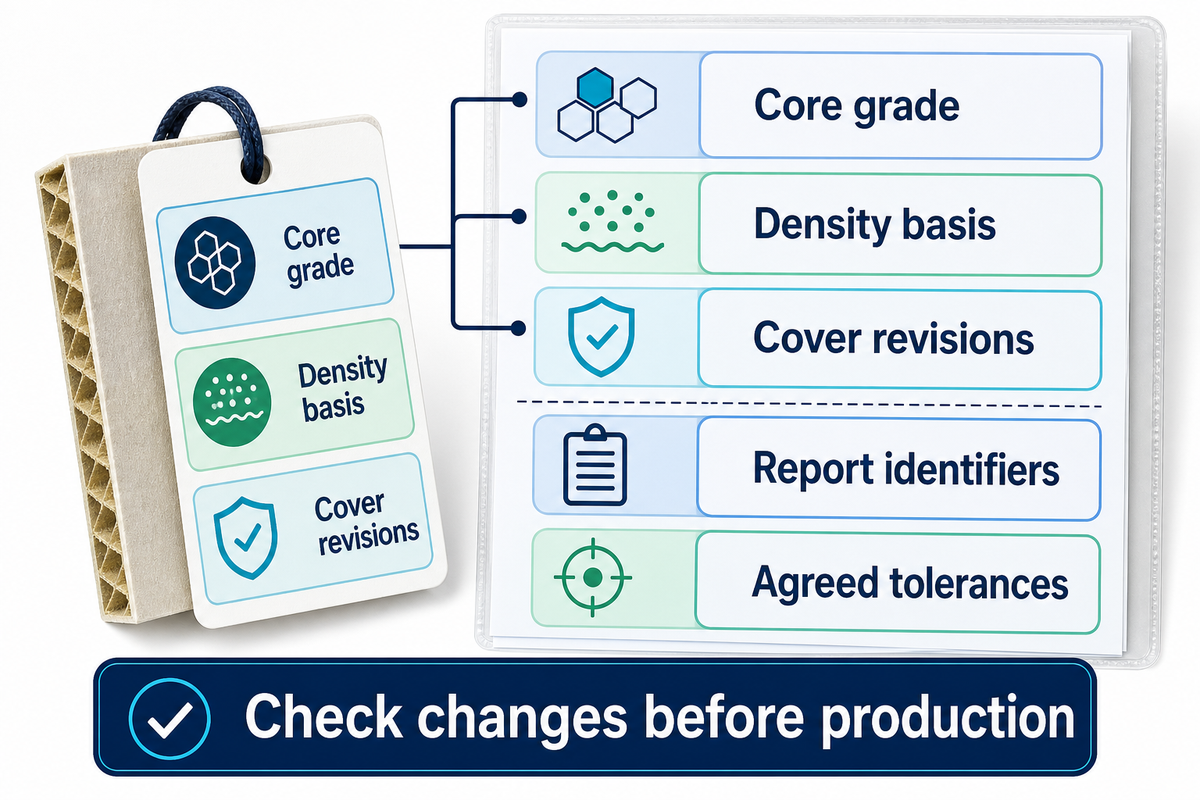

Sample approval is useful for repeat orders when the sample is attached to a written specification and a construction record. Be sure to indicate core grade and density basis, core dimensions, agreed-upon tolerances, cover revisions, and report identifiers. Keep the signed specification and sample reference, so procurement can check for a substitution rather than relying on a familiar photo in a product data sheet.

1. Give the approved sample and its drawings a shared reference.
2. Record the agreed specification, separating typical brochure values from acceptance limits and test conditions.
3. Check changes before production and compare the delivered records with the approval.

This is a purchase method rather than a prescribed lab test. A “showroom squeeze” may help compare shape and firmness, but it won’t replace fatigue data or specify an allowable load. Keep children away from improvised load testing or drop testing.

Report continuity is also important. CPSC material-change guidance states that, for children’s products subject to testing and certification requirements, a material change that could affect compliance requires the manufacturer to retest the affected product or component at a CPSC-accepted laboratory and issue a new Children’s Product Certificate after passing results. This doesn’t mean that every batch or every like-for-like cover replacement automatically requires full retesting. You should ask the responsible supplier what reports still cover the changed product.

Compare cover, core and whole-block replacement costs

A replacement cost analysis should be based on the initial purchase, the costs for repairs and the labor for fitting, and the same time period. A block with replaceable covers that costs more may actually cost less if the cores stay in service and if covers are purchased at the right price. For the example used in this report, planning inputs are invented, and market prices and Didi quotes aren’t used.

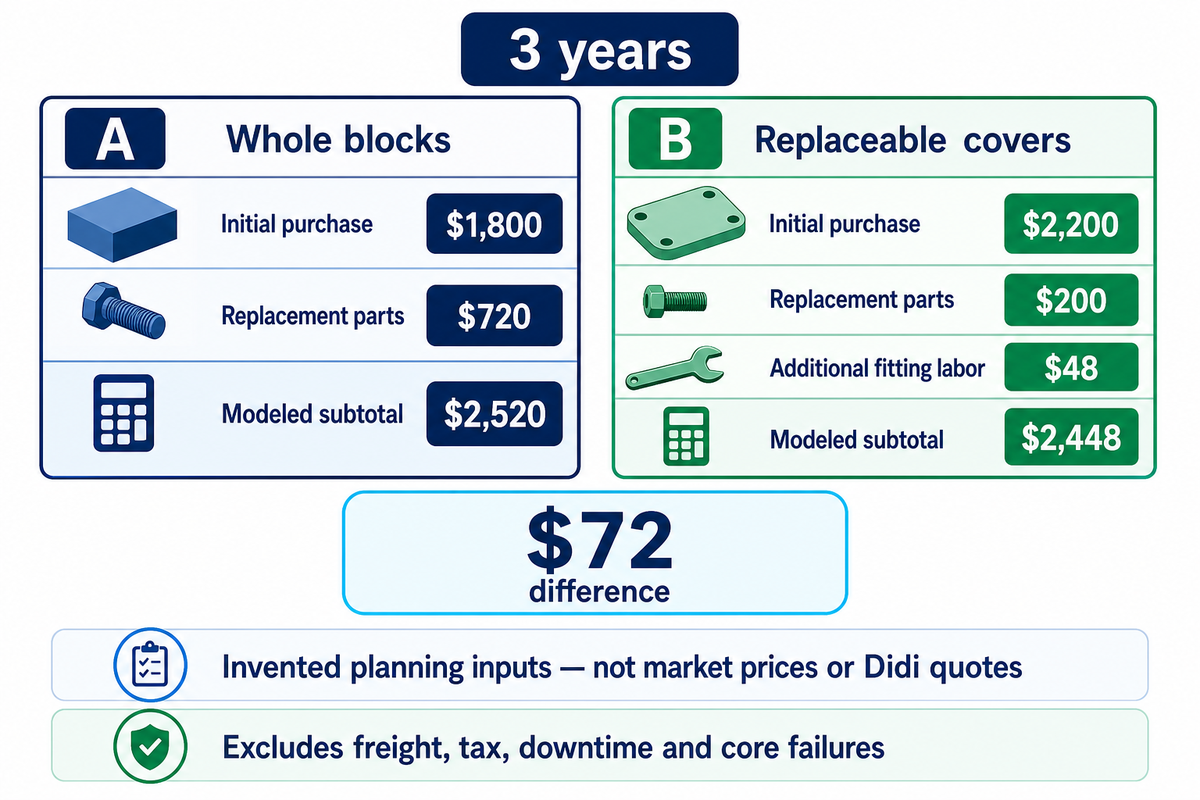

Cover-or-Core Replacement Cost Example

Imagine a venue manager taking these quotes to finance. Option A costs $1,800 initially, then eight assumed whole-block replacements add $720: $2,520 in total. Option B starts at $2,200. Eight covers add $200, and fitting takes 8 × 0.25 hours × $24/hour, or $48. Its modeled total is $2,448. The apparent saving is only $72 over the three-year planning period. Finance should therefore ask about delivery charges, fitting effort and core condition before paying the premium. One unmodeled cost could reverse the result. The exercise supports a better quote comparison; it doesn’t predict which blocks will fail or promise a saving.

Cleaning costs can exceed the difference in parts costs. Assuming an additional 5 minutes per open day over 300 days at $24/hour equates to $600/year. Time the proposed care routine against your commercial soft play set before assuming a lower parts and repair bill means lower operating costs.

Plan spare parts and documentation for future orders

Future orders require a part identity and revision history as well as a price. Contact the supplier to find out which replacement covers fit the approved core and how revisions are identified. Get answers to what happens if the cover and/or the material are discontinued, including whether material-change testing applies to the replacement. The commercial commitment to availability is a written one, not something a density report can prove.

Didi Land’s soft play range helps with project discussions for room dimensions and colors, and age groups. Send the core/test/cover record along with input when requesting a configuration. For a climbing set alongside a ball pit, identify the individual blocks and intended uses rather than using a single material number for every element of foam.

Shortlist quotes that identify actual materials and assemblies, compare matched tests, and price care and replacement routes that your staff can perform. Safe indoor play is dependent on the use case and finished configuration, not just foam selection. Be sure to contact the responsible supplier to ask whether the proposed set is suitable for that arrangement.
