Indoor Playground Equipment Manufacturer | Custom Commercial Solutions for FEC, Malls and Daycares
Indoor playground equipment assembled to AS 4685, EN 1176, ASTM and CE standards, exported to 40+ countries since 2014 from a 12-year Guangzhou factory. We design custom plans from 30 m toddler zones to 1,500 m flagship family amusement centers, with transparent tiered pricing, 30-day production, and detailed post-install maintenance documentation.
AS 4685
EN 1176
ASTM F381
CE
ISO 9001
1 / 5
40+
Countries Exported Since 2014
ISO/CE
5 Industry Safety Standards
30 Days
Fast Production Cycle
24M
Structural Warranty & 7/24 Support
Why Most Indoor Playground Investments Underperform — and the 3-Way Fix
3 repeat defects available in failed indoor playground investments. They all originate in suppliers chosen before any equipment leaves the factory.
Market Reality & Sourcing Mistakes
Operators on r/smallbusiness budget ~ $800K, mid-size FECs, then realize the insurance can take more than 10% of monthly sales when their cert paperwork can’t meet the wild. An extensively referred 2025 industry check-list identifies “pricing which appears cheap because some expenses are not apparent” as the most common sourcing mistake- just comparing the equipment headline number enables later a 100K over budget.
System Specifications Definition
Indoor playground equipment describes commercial grade play decks designed for heavy stream public settings like shopping centers, family amusement venues, schools and hotels kids zones. Situated in-between light-duty, low-cycle residential play sets and rugged weatherproof ground+anchored outdoor playgrounds, these systems feature a hot galvanized steel framework.
01. Manufacturing
02. Hidden Costs
03. After-Sales
Pain 1 — Cut-corner manufacturing that fails 18 months in
Certain Chinese manufacturers quote the same bare steel tube spec, then covertly freight in 1.6 mm wall thickness tubes instead of 2.0 mm, foam densities below 50 kg/m³, or fasteners which lack grade stamps. When the seasonal demand hits again and the structure begins to collapse, owners are stunned by the paint peel and platforms sinking—only after the warranty window has already closed.
Our approach: we present the minimum material spec across the board — Ø48 mm × 2.0-2.5 mm wall hot-galvanized pipe, foam density 60-80 kg/m³, PVC tarpaulin 1100 GSM, maximum 1000D weave, fasteners 8.8 grade—and we include the mills’ certs with each shipment.
Pain 2 — Hidden cost stacks that destroy first-year cash flow
FEC startup tips remembered how easy the budget death-by-paper-cut becomes in r/smallbusiness threads when operators confess that they constantly stumble across hidden costs you didn’t know you had (DDP customs charges doubling the FOB invoice, spare-parts orders that force new minimum lots, on-site supervisor day-rates tacked on in the install phase).
Our answer: one pricing page listing provider step 1-4 equipment cost, DDP shipping range by region, spare-parts policy shelf-price for 24 months after install, and English-speaking supervisor slot with published day-rate.
Pain 3 — Slow after-sales when the supplier is 12 time zones away
An FEC utilities post remembered how rocky unreliable attractions with long maintenance stops hit customers’ comment cards, while confusing safety checkpoints and missing insurance evidence prop operators up. When a panel cracks or a hinge works loose, a pan-of-18-wks part tightens the season. Cause: too many overseas suppliers keep a single email line running 20-hour response loops.
Our answer: 24/7 WhatsApp lines manned in English and Mandarin and a downloadable maintenance manual for every kit we ship and a spare-parts catalog with same-week dispatch on common items.
OPS
DESIGNER
PROC
Indoor Playground Equipment Product Lines and How to Choose by Venue
Our four indoor playground kit composites span every age group from crawling babies to running-amped prechildren. Each kit is built to the same steel framing spec for seamless custom design.

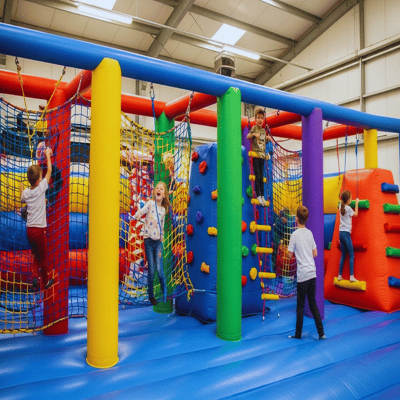

Indoor Jungle Gym
Multi-level climbing structures with rope nets and adventure decks. Capacity 8-30 children. Ages 3-12.
View Range →

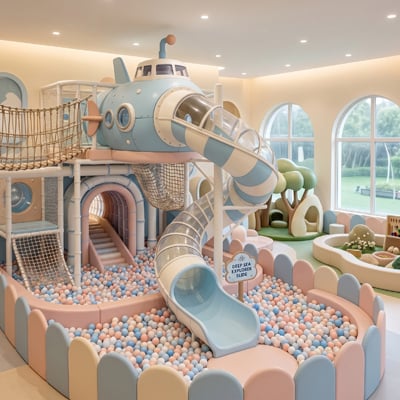

Indoor Playground Slides
Tube, wave, and spiral slides for platform heights 1.2m to 4.5m. Best for FECs and malls.
View Range →

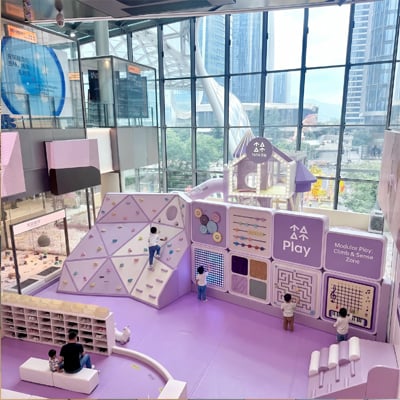

Indoor Play Structures
Modular soft play systems combining climbing walls and sensory panels. Best for shopping malls.
View Range →

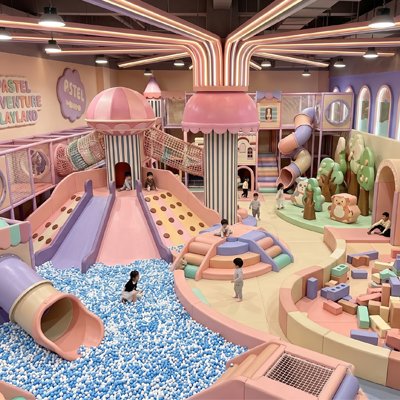

Toddler Playground
Low-platform soft-foam systems with rounded edges for ages 6 months to 3 years.
Request Catalog →Material specification — the floor of every Didi Land system
Frame pipe
Hot-dip galvanized steel, Ø48 mm outside diameter, 2.0-2.5 mm wall thickness
Padding foam
EVA foam, density 60-80 kg/m³, fire rating B-s1,d0 per EN 13501-1
Wrap material
PVC tarpaulin, 1100 GSM, 1000D nylon weave, lead-free pigment
Deck boards
18 mm marine plywood with 25 mm EVA foam top, fully PVC wrapped
Fasteners
Grade 8.8 zinc-plated bolts, anti-loosening nylon-insert nuts
Soft cover finish
UV-stable PVC, antibacterial treatment, hose-down cleanable
Ball pool balls
LDPE 70 mm, phthalate-free, EN 71-3 migration limits
Decision Matrix — Recommended product mix by venue type and floor area
Venue type
Floor area
Recommended mix
Equipment investment
Mall toddler corner, hotel kids zone, restaurant play area
30-100 m²
Toddler Indoor Playground + Soft Play insert
$5,000-$15,000
Daycare, kindergarten, early-ed center
80-200 m²
Indoor Play Structures + Toddler corner + small slide
$10,000-$30,000
Mid-size FEC, community recreation center
200-400 m²
Indoor Jungle Gym + Slides + Soft Play + Ball pool
$25,000-$75,000
Large FEC with trampoline zone
400-800 m²
Full lineup + Trampoline park module
$60,000-$180,000
Flagship destination park, mixed-use complex
800-1,500+ m²
Themed custom design + Ninja course + Climbing walls + multi-level structure
$150,000-$500,000+
Didi Land vs Distributor vs Other China OEM — Cost and Quality Comparison
In seeking to procure commercial indoor playground equipment, still commonly defined by buyers (or sometimes spelled out as commercial playground equipment, in the UK or AU marketplaces), three levels of pricing are available and the significant sub-market differences in customer care and value for money often become apparent only after installation begins and problems emerge. In this first tier comparison, within a range of costs averaging between and in 2026, we have relied on 2026 cost guides and existing quote benchmarks from industry insiders:
| Dimension | US/EU Distributor | Generic China OEM | Didi Land OEM |
|---|---|---|---|
| Per-m² equipment cost (mid-FEC) | $80-$140 | $25-$45 | $30-$55 |
| Lead time (design lock to ready-to-ship) | 60-90 days (re-import from China) | 35-60 days | 30-45 days in-house |
| Minimum order quantity | 1 set, often premium-tier minimum | 1 set | 1 set, no premium gating |
| 3D design service | Charged or capped at 2 revisions | Sometimes free, limited revisions | Free, unlimited revisions |
| Cert standards documented | Logos only, standard numbers absent | 1-3 standards named | 5 standards: AS 4685, EN 1176, ASTM F381, CE, ISO 9001 — full test PDFs provided |
| Test certificate PDFs downloadable | No | Rare | Yes — every standard has its report |
| DDP customs option | Variable, often opaque | Rare | Optional add-on with published cost band by region |
| Spare-parts price-hold post-install | None or 90 days | None typical | 24 months |
| Maintenance manual (English) | Generic catalog | Translation-machine quality | Engineered for venue, English-checked |
Industry Insight
Basing their margins into the per-m premium and cert opacity, distributors rarely showcase the underlying mill certificates to the buyer as they did not fund that aspect of the testing work, nor do they readily explain how it benefits the buyer’s insurance position. Buying generic China OEM integrators reduces the headline offer price by avoiding nearly all documentation work, but then provides it afterwards by adding to spare parts surcharges and air-freight rush orders when the manufacturer experience suffers a component failure. We have aimed for a middle position: keeping direct-from-factory pricing visible for this stage, while frontloading the documentation, warranty and worker supervision workload that costs less when the increment is accounted for up-front.
“We tested four pipe-wall thicknesses against three years of installation data before we settled on the 2.0-2.5 mm Ø48 band as our floor. Anything below that creates wobble at the third platform tier, and customers feel it long before any inspector flags it. Ms. Cherry insists every quote we send specifies the floor, not the ceiling — so a buyer comparing us to a 1.6 mm offer can see what they are giving up.”
Indoor Playground ROI and Profitability — Real Investment Returns by Venue Type
OWNER INVESTOR
According to a 2026 Research and Markets report, the overall global Family/Indoor Entertainment Centers market will increase from US$39.97 billion in 2025 to US$45.61 billion in 2026, a CAGR of 14.1%. The U.S. segment is recovering unevenly after the pandemic, but as of 2023 it was the case that 65% of revenue for corporate chain FECs was generated by those concept operations, indicating that disciplined cost structures and the use of certified equipment have become the value leader.
According to a 2026 Research and Markets report, the overall global Family/Indoor Entertainment Centers market will increase from US$39.97 billion in 2025 to US$45.61 billion in 2026, a CAGR of 14.1%. The U.S. segment is recovering unevenly after the pandemic, but as of 2023 it was the case that 65% of revenue for corporate chain FECs was generated by those concept operations, indicating that disciplined cost structures and the use of certified equipment have become the value leader.
Revenue model — where the money actually comes from
An indoor playground operator balances revenue streams commonly published to five (and often fewer) separate accounts and the fractions vary considerably based on the size of the venue:
Ticket admissions
US$8-$18 per child for a two-hour session, parental entry being free or $3-$5. Largest revenue streams in smaller facilities.Birthday parties
US$250-$600 for each event, holding 12-18 events per month in a healthy mid-sized FEC. Highest margin per square meter element.Food and beverage
As much as 15-25% of revenues when a kiosk or cafe is incorporated into the venue. A dwell-time multiplier.Memberships
At US$35-$80 per month per family. A smoothing element for monthly cashflow.Arcade & Add-ons
The variability in scale and design theme variation tends to scale with the overall size of the floor layout.Investment payback by tier — three benchmark scenarios
Estimated payback timelines (illustrative ranges, not guarantees)
8-14 months Payback

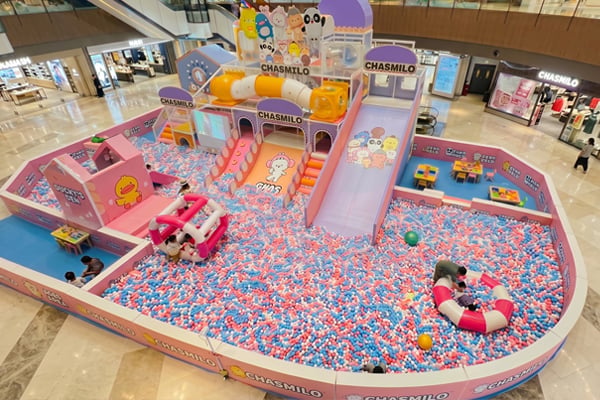

Toddler corner inside a mall or restaurant
Equipment at a value-level purchase, $5-15K, rent that could be rent-free as a mall amenity, lower staffing requirements. Focuses on kindergarten group bookings and dwell-time uplift.
18-30 months Payback

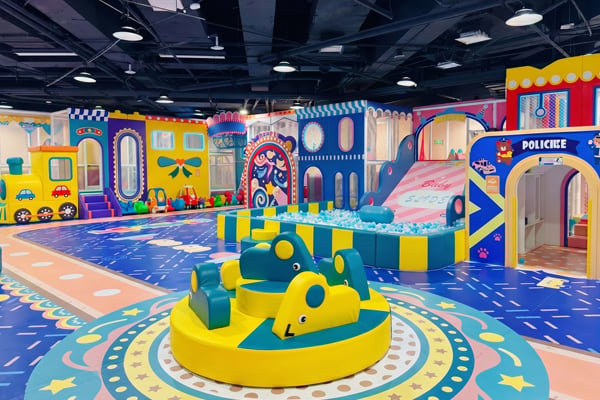

Mid-size FEC, 200-400 m²
Equipment at a sophisticated buildout ($25-75K per unit), total expense $200-500K. Entry point for most first-time operators combining ticket, parties, and F&B.
30-48 months Payback

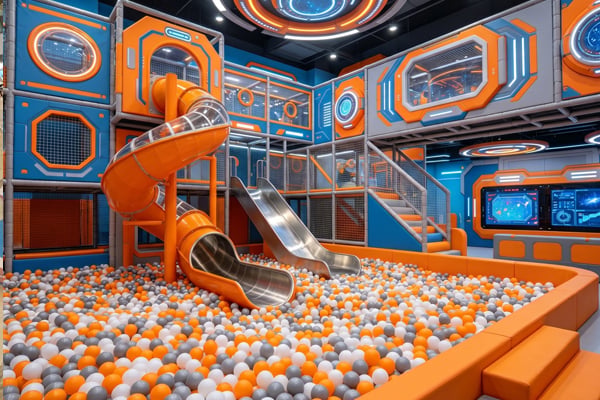

Large FEC or flagship destination park
Equipment $100K-$500K+, can be more than $1M. Full attraction mix: ropes course, ninja, climbing walls, soft play, and ball pits. High visitor ROI at scale.
Certifications and Safety Standards — What Each Standard Actually Tests
Labels with no standardized number are not trust-builders – they are remaining placeholders. Here is what each standard exactly examines, why a serious B2B operator should get the report pdf.
AS 4685:2021 — Australian Standard
The 2021 iteration of AS 4685 introduces a six-section load by masses test for permanently installed outdoor equipment. Tests include minimum space distances, free fall heights, impact attenuation, and entrapment removal risks. Frames are tested against dynamic loads from 420 kg to 1,920 kg. All our website examples are certified to AS 4685.1 safety specs.
EN 1176-1:2017 — European Standard
EN 1176 is issued by the European Committee for Standardization. It specifies safety criteria for permanent playground installations. Compliant installations are presumed adequately supervised. Its requirements cover structural safety, entrapment, maximum fall height, and impact zone surfacing. EU insurers require this for commercial play sites.
ASTM F381 — US Trampoline
ASTM F381 addresses trampolines. Our park-class installations are certified to the F381 performance and safety criteria. The related ASTM F1487, regulating public-access play equipment, is enforced in the US by the CPSC at playgrounds, malls, schools, parks and daycare facilities.
CE Marking — EU Conformity
CE approval signals the piece meets directives covering health, safety, and environmental safety for the EU. Our CE approval registry includes electromagnetic compatibility on electrified attractions and general product safety for our entire play venue product line.
ISO 9001:2015 — Quality Management
ISO 9001 audits the manufacturer’s systems, confirming documented procedures satisfy international standards for traceability, supplier control and continuous improvement. Our DIDI-ISO9001 registration is updated annually to bridge quality control and improvement.
Application venues we have built into
Projects include malls and mixed-use developments, indoor venue-based childrens play centers, FECs, kinder-gardens and early-childhood development centers, restaurants, hotels with childrens entertainment, local authority community recreation centers.

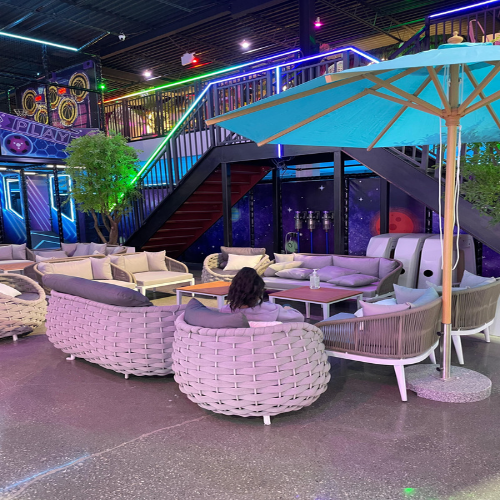

FEC operator, France
Operator first compared three Chinese machine suppliers and one French franchise. Picked Didi Land due to fixed materials spec flooring and the opportunity to examine the EN 1176 test report PDF on request before deposit. Has seen stable demand increase in weekend bookings.

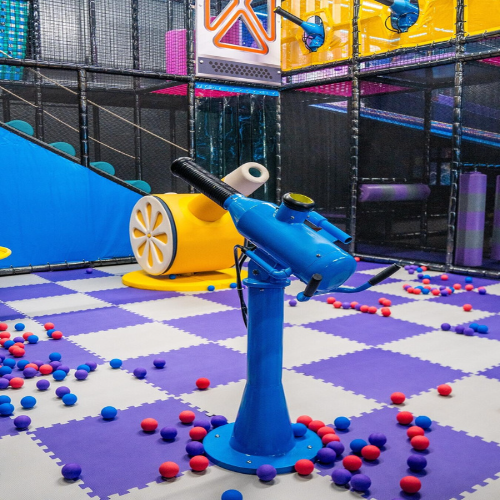

Hotel kids zone operator, Malaysia
Operation six hotel groups requested low-level toddler build outs with soft internal edges and no exposed hard spots reachable to crawling children. Chosen engineer rounded-off shapes during design. Installation managed by Didi Land supervisor took 4 days.

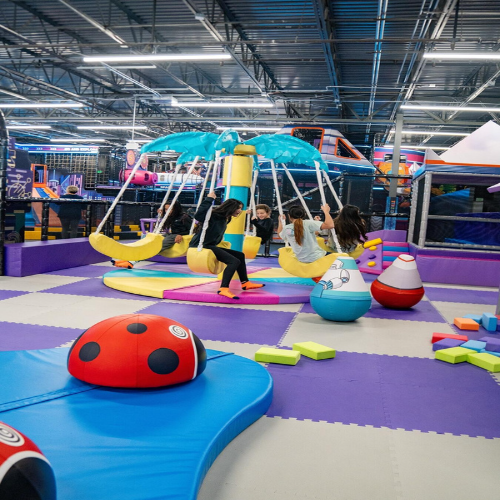

Kindergarten chain, Poland
Customer needed EN 1176 documentation to satisfy local insurance regulations. Uniform standards requirement resulted in each site buying the identical spec floor plus spare parts kit, minimized maintenance complexity when managing several sites.
40+
Countries served
12
Years operating since 2014
90%+
Output exported globally
5
Named cert standards
24/7
WhatsApp support

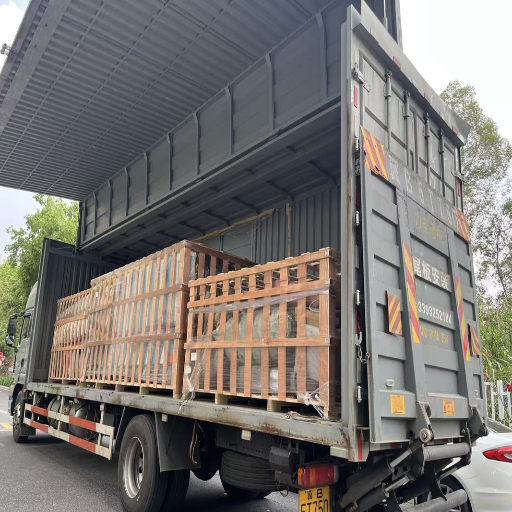

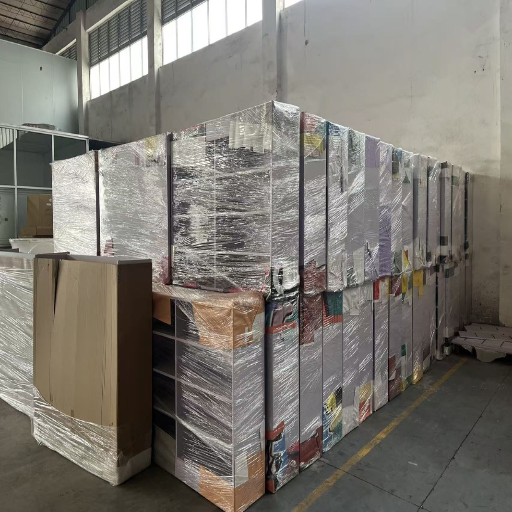

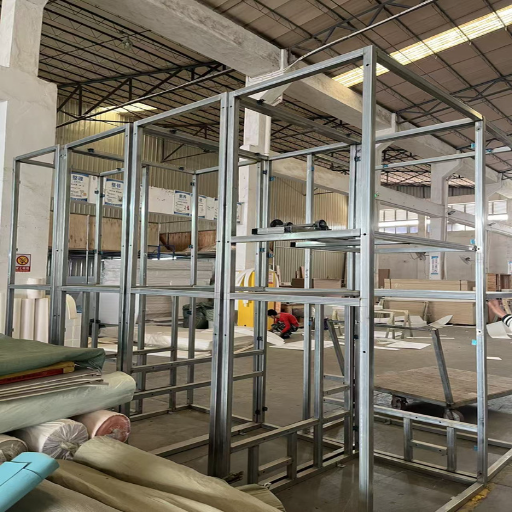

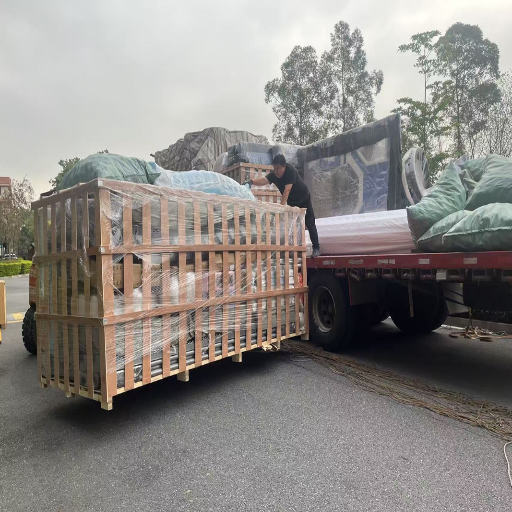

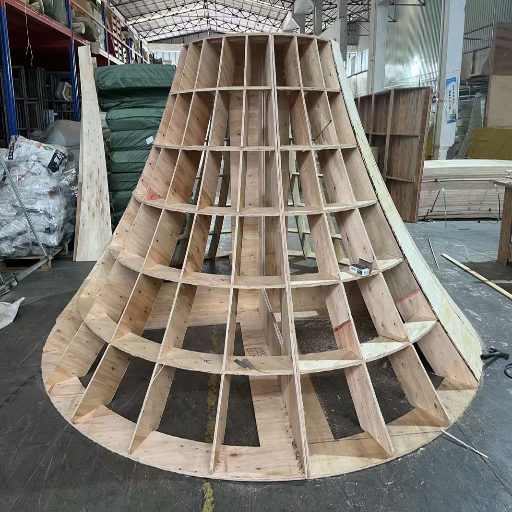

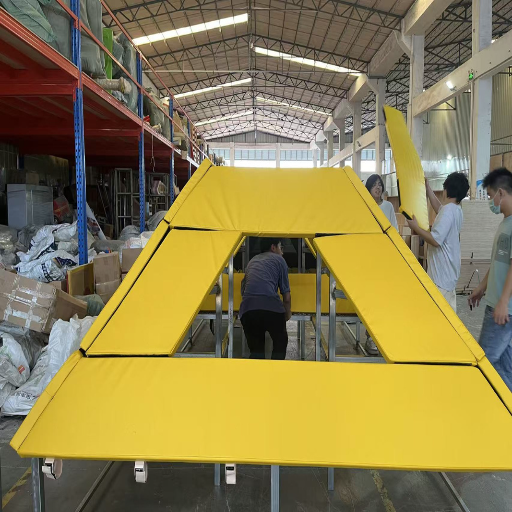

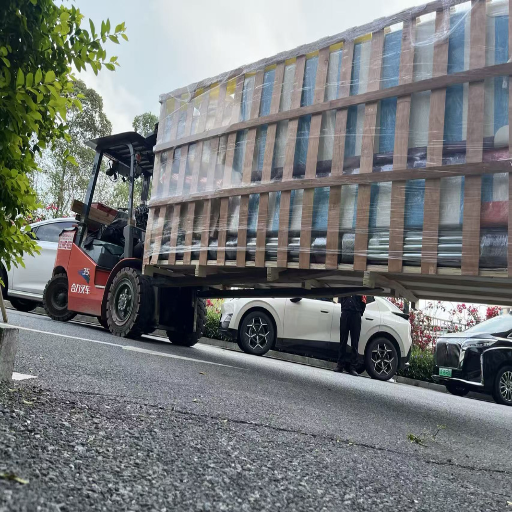

Our Modern Manufacturing Facility
OPS
PROC
DESIGNER
Procurement Guide — Pricing Tiers, MOQ, Lead Time, Warranty, Payment Terms
The financial parameters behind a purchase that brokers and distributors typically keep on the back-burner of their quote forms. Operators advised us they wanted the figures. Here they are.
Three pricing tiers by floor area (equipment only)
-
Entry Tier$5K – $15K
- Floor area: 30-100 m²
- Per-m² average: $90-$160
- Lead time: 30-35 days
-
Mid Tier$15K – $50K
- Floor area: 100-300 m²
- Per-m² average: $80-$170
- Lead time: 35-45 days
-
Premium Tier$50K – $500K+
- Floor area: 300 m²+
- Per-m² average: $80-$200
- Lead time: 45-60 days
* Cost of equipment does not include shipping, customs, or site installation. Typical turn-key costs in the $180-$450 per m2 band are on par with general industry metrics for the near future, 2026.
Project timeline — design lock to opening day
-
Design and revisions
Day 1-7Free 3D design from your floor plan, unlimited revisions until you approve.
-
Production
Day 8-45Manufacturing at our Guangzhou facility. Photos sent at 50% and 90% completion.
-
Sea freight
Day 45-75FOB Shenzhen by default. DDP option available with published cost range by region (typically $4K-$12K depending on destination).
-
On-site installation
Day 75-90Local installer crew with optional English-speaking Didi Land supervisor. Most installations complete in 5-15 days.
MOQ, warranty and payment terms
-
Minimum order quantity 1 set. No premium-class safeguards, no minimum dollar amount needed.
-
Structural warranty 24 months, covers frame, deck and environs materials.
-
Electrical warranty 12 months, covers illumination, motorized components, laminated-glass, transparent-economy, transparent-high end, any electrics.
-
Design support Lifetime gratis in-app (UX) 3D re layout for changes within the same venue.
-
Spare-parts pricing lock 24 months from installation date, same-week dispatch on common parts.
-
abode payment options T/T (Transmission Technology / instructions), L/C (Declaration of Credit), Alibaba Trade Assurance welcome for first time buyers wanting escrow.
-
Payment terms 30% visible deposit (T/T, Alibaba TA, Alibaba Trade Assurance, L/C) on order confirmation, 70% B4 shipment. For purchases above $11mm we will split in half with the buyer, bank guarantee remaining 50:50.
Post-sale package — what ships with every system
Together with the original English-language venue-specific maintenance manual, the maximum size spare parts catalog with access to no-penalty 24-month price holds, annual check list which we suggest operators disseminate quarterly to their insurance agency, English- and China-facing WeChat channels, every purchase includes these materials. Think of saving money on maintenance like the lines the best operators on us.smallbusiness do. This is how.
Frequently Asked Questions
For commercial systems ordered direct from a manufacturer in 2026, typical equipment costs (2505 ft2 toddler corners to 2153 m2 flagship 4255 f2 FEC fit-outs) have been roughly estimated as $60-$135 m2 ($90-$200 f2) with packaged turnkey cost (including shipping, customs and installation) roughly estimated as $135-$326 m2 ($180-$450 f2) based on theme complexity, and destination.
Based on research published by Research and Markets, the global Family/Indoor Entertainment Centers market is forecast to grow at 14.1% CAGR from 2025 to 2026. US market segment is expected to recover with corporate chain operators within the next decade currently capturing 65% of the nation’s revenue. Key profit-drivers for operators in order of importance are rent, ticket price, daily traffic, insurance, and marketing spend. Mid-range operators usually find payback within 18-30 months if rent is less than 25% of receipts and equipment is certificated with competent engineer sign-off that holds insurance premiums in check.
Several established Chinese manufacturers serve the international commercial play centre market, including our own factory in Guangzhou (Didi Land, founded 2014, exporting to 40+ countries), and competitors including Angel Playground, Dreamland Playground and others. The questions that separate genuine factories from re-sellers are: do they hand over mill certificates for steel, can they show you the test report PDF for their cert claims, and do they publish material spec floors rather than ranges that hide cost-cutting?
Pursue each of the three jurisdictional standards depending on the territory to which you sell, EN 1176 for the EU, ASTM F1487 for the US and ASTM F381 for trampoline modules, “AS 4685” for Australia and NZ. All three standards are available for free download on the IATP website. For commercial imports into EU countries CE marking is mandatory. ISO 9001 audits the manufacturer (us), not the product not the product but the plant signals documented quality.
From design sign-off to shipping ready to install takes 30-45 days at the entry and mid tiers, shipping takes 25-35 days by sea in most situations, and installation and commissioning takes 5-15 days according to complexity. Plan to work from signed contract to opening for 90-120 days on average for a typical FEC project.
One unit. There is no minimum dollar requirement, of course, and you do not have to hit the premium tier for account gating. Good quality hotel kids corners and restaurant play areas of 30-50 m scale will be welcomed into your portfolio of reference locations.
Yes, every project is offered with English-speaking installation supervision as a plug-in additional service, citing a published day rate for the supervision before the project orders (it is submitted for acceptance). A Didi Land supervisor monitors your local installer crew and attests their competence to the safety standards before the opening. For projects above 300 m2 we recommend the supervisor plug-in option where the cost of the course of troubleshooting is usually justified by the time saved.
A commercially installed indoor solution manufactured to the spec floor on this page (Ø48 mm × 2.0-2.5 mm hot-galvanized steel, EVA foam 60-80 kg/m³, 1100 GSM PVC tarpaulin) lasts an average of 8-12 years of all-day every-day commercial use following standard monthly-, quarterly- and annual- maintenance including holding fastener checks every 3 months and consulting a specialist for threading and fitment audits annually. Wear items such as ball pool balls, soft cover panels, slide bed liners will be replaced from time to time, but the structural frame is the long life part.
Our DDP (Delivered Duty Paid) package includes ocean freight, destination port build handling, customs clearance, import duty and inland trucking to the address of your venue. Cost variables usually ranges run $4,000-$12,000 depending on utilization levels of 4 ft containers and your geographical region. We include the band in the quote so you can directly compare a bill-of-materials against your local broker who will provide a separate line breakdown.
Yes. Theme customization is included as part of the free digital-3D designing. We have built jungle, ocean, confectionery, space ship, sports and licensed themes for clients in over 40 countries, and we can design from your moodboard, or spin-out concept art if you do not have your own. PVC and EVA color-stock stock colours are selected to match your ethos and branding.
Why We Publish Our Standards, Pricing, and Lead Times
40+ countries shipped to since 2014, and the most common comment from theme owners is not the pricing – it is the provider who was capable of hiding lead-time delays, omitting clause-by-clause customs and import duty costs, or failed to specify exactly which test report covered which component. Our price bands, lead-times and test certificates per individual standard on the page are the exact figures our sales team quotes when suggesting them against US providers. If there is a discrepancy please contact us so we can correct the page.
