Commercial Indoor Playground Slides — Custom Manufactured for FEC, Mall, and Hotel Operators
ASTM F1487-tested
EN 1176-3
CE ISO 9001
600+ FEC Projects in 40 countries
4-8 week lead time
When you are sourcing commercial indoor playground equipment for a Family Entertainment Center, mall play zone, or kindergarten installation, slide selection drives 40% of your floor footprint and most of your safety-audit risk. Didi engineers spiral, wave, hump, tube, and custom-themed slides to ASTM F1487-25 and EN 1176-3:2017 specifications – backed by 14 years of factory output and a 280,000 m vertical-integration facility in Guangzhou.
Request Custom Quote
Why Off-the-Shelf Slides Cost FEC Operators Twice
Operators who buy the cheapest stock indoor playground slide they can find typically replace it inside 18 months – not because the slide failed structurally, but because it failed three other tests at once. That is when the second invoice arrives.
Insurance audit fail.
A slide without traceable EN 1176-3 or ASTM F1487-25 paperwork flags carrier underwriting and pulls a renewal premium up 12-25% per year, every year you keep it installed.
Component repair stacks fast.
Industry data shows repair quotes of $120-$800 per slide component when a side panel cracks, a flange splits, or anchor bolts work loose under high-traffic use by children.
Deferred maintenance trap.
A small surface crack ignored for one season turns into a full slide-bed replacement at 1.5-3 the original part cost – and sometimes the entire structure if anchor geometry no longer meets the fall protection envelope.
Slide Types We Engineer — 7 Configurations
Every commercial slide layout starts with a type decision. The seven we manufacture cover the full age 2-12 envelope used in indoor playground equipment for FECs, kindergartens, hotels, and mall play parks - engineered for the durability and continuous traffic that retail-scale venues require. Each card lists what the slide is best for and the layout footprint you should reserve.

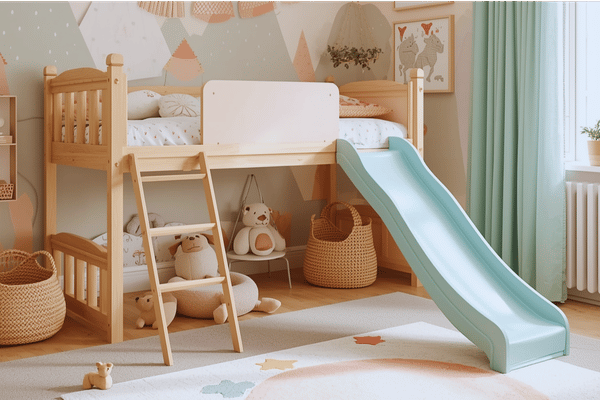

Open Bed Slides
Wide low-slope bed. Best for toddler zones and inclusive play where line-of-sight supervision matters.
1.2-2.0 m drop • ages 2-5 • HDPE or FRP

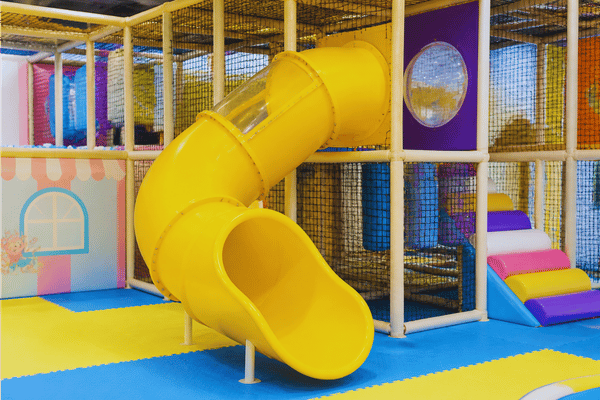

Curved Slides (L / J-shape)
Single-bend layout that absorbs lateral kinetic energy - ideal where ceiling-to-floor height is constrained but you still want excitement.
2.0–3.0 m drop • ages 4–10 • HDPE

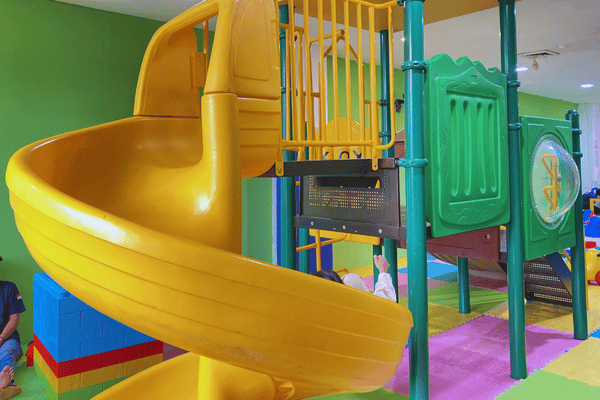

Spiral Slides
True helical elbow geometry delivers consistent rotation without speed spikes. Our most-requested commercial spiral slide for mall installations.
2.4-4.5 m drop • ages 5-12 • HDPE / Stainless
Combo Spiral (Double Helix)
Inter-twined or double helix - the centerpiece slide every FEC needs for repeat-visit photo content. Engineered for back-to-back use.
3.0–5.0 m drop • ages 5–12 • custom material

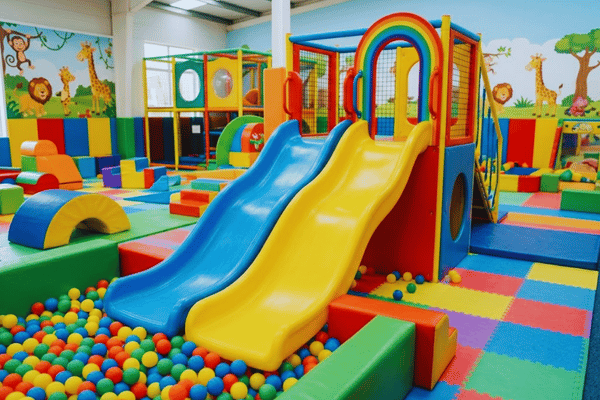

Hump Slides
Periodic speed change keeps older kids engaged on a short-footprint bed. Strong fit for shopping-mall corner activations.
1.8-2.6 m drop • ages 5-12 • HDPE / FRP

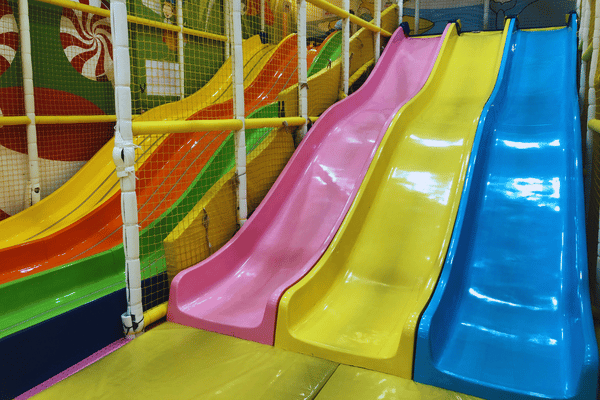

Wave Slides
Four-column carnival ride bed- three or four kids ride together, encourages social play and makes for an Instagram favorite.
2.0-3.5 m drop • ages 4-12 • FRP / HDPE
Tube Slides
Fully enclosed ride tunnel, opaque or semi-transparent, common on commercial tube slide installations where fall-zone clearance is at a premium.
2.5-5.0 m drop • ages 5-12 • HDPE / Stainless
Decision Matrix — Which Type Fits Your Space?
Use this matrix to sort slide type options before reaching the specification table. Floor-to-top height determines your slide-bed length, ceiling clearance your ability to build a tower platform. Footprint includes the required drop-zones and exit zones.
| Slide Type | Recommended Age | Floor-to-Top Height | Footprint (incl. exit zone) | Ceiling Required |
|---|---|---|---|---|
| Open Bed | 2–5 | 1.2–2.0 m | 2.0 × 3.5 m | ≥2.4 m |
| Curved (L/J) | 4–10 | 2.0–3.0 m | 2.5 × 4.0 m | ≥3.2 m |
| Spiral | 5–12 | 2.4–4.5 m | 3.0 × 3.0 m | ≥3.5 m |
| Combo Spiral | 5–12 | 3.0–5.0 m | 3.5 × 3.5 m | ≥4.0 m |
| Hump | 5–12 | 1.8–2.6 m | 2.0 × 4.5 m | ≥3.0 m |
| Wave (multi-lane) | 4–12 | 2.0–3.5 m | 3.0 × 4.5 m | ≥3.4 m |
| Tube | 5–12 | 2.5–5.0 m | 2.5 × 4.5 m | ≥3.6 m |
Customer Results — Verified Installations Across 40 Countries
Procurers often ask us where our commercial quality equipment has been installed before giving us a purchase order. The short answer: over 600 projects since 2014 in 40+ countries, documented install history in France, India, Sri Lanka, South Africa, Mexico, Malaysia, and Poland. Here's a representative segment of our project portfolio- the complete list of references is available upon NDA signing:

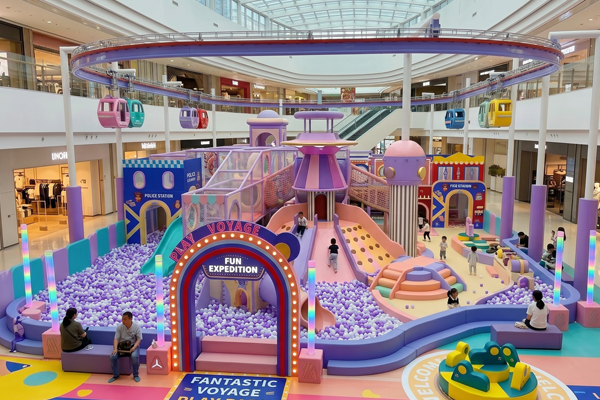

Mall Play Zone
Spiral + tube slide combo, age 3–10

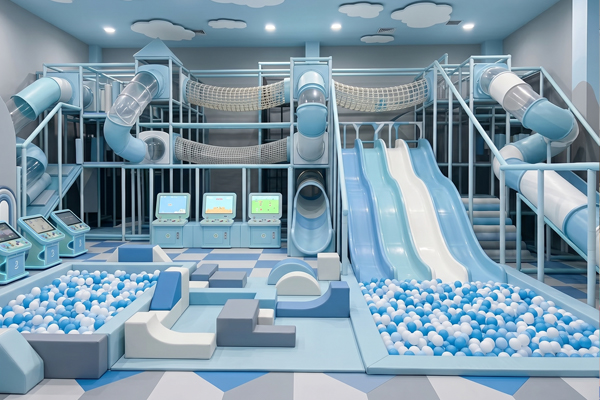

FEC Installation
Wave + combo spiral, multi-lane

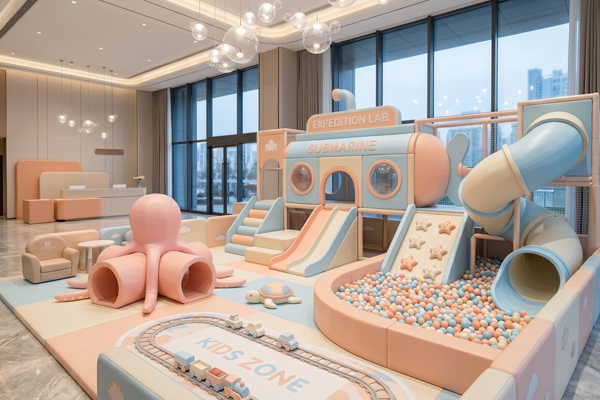

Hotel Kids Club
Open-bed + soft play slide cluster

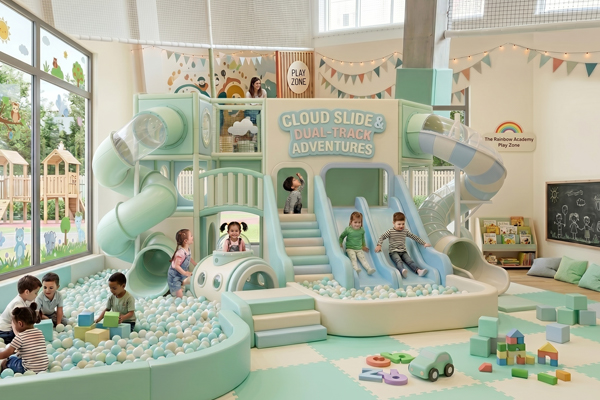

Kindergarten
Custom-themed, age 2–5 zone
On our project portfolio, repeat sales constitute 50% of our annual slide capacity- contractors who deploy one zone typically return to extend a second within 1.5-2 years. Clients who request a factory tour during the pre-sale specification process report higher confidence at material acceptance approval, that's why we welcome site visits at our 280,000 m Guangzhou factory prior to contract signing:
Operator Model · Bronze
What Slides Contribute to FEC Operator Returns
FEC owners report that custom themed ride tunnels combined with ball-pit clusters result in greater repeat visitation and dwell time.. Exact return-tours vary by location, operating hours, per session ticketing schemes, and proximity to other revenue earning attractions (arcade, F & B). FEC market data indicates global growth in that sector at an estimated 9-11% CAGR through 2030 (Strategic Market Research; Future Market Insights).
Spec Comparison: Spiral vs Wave vs Hump vs Tube
Once you have selected a slide type in the matrix above, the next decision is material and lifecycle. The four most-requested geometries for commercial FEC orders - spiral, wave, hump, tube - vary significantly in maintenance cycles and overall cost structure: the table below summarizes the comparison our brochure-based market rivals do not share:
| Type | Material Options | Height Range | Age Group | Footprint | Speed Profile | Maintenance Cycle | Cost Tier (Project) |
|---|---|---|---|---|---|---|---|
| Spiral | HDPE / Stainless | 2.4–4.5 m | 5–12 | 3.0 × 3.0 m | Constant — true helical elbow | Inspect 6 mo · Bearing service 12 mo | Tier M |
| Wave | FRP / HDPE | 2.0–3.5 m | 4–12 | 3.0 × 4.5 m | Periodic — bed-by-bed acceleration | Inspect 6 mo · Joint resurface 24 mo | Tier M / L |
| Hump | HDPE / FRP | 1.8–2.6 m | 5–12 | 2.0 × 4.5 m | Stepped — deliberate speed dip then recovery | Inspect 6 mo · Bed re-anchor 18 mo | Tier S / M |
| Tube | HDPE / Stainless | 2.5–5.0 m | 5–12 | 2.5 × 4.5 m | Variable — geometry-dependent | Inspect 4 mo · Section swap 36 mo | Tier M / L |
Cost Tier S ( small project), M (mid volume FEC), L (large indoor playground). Actual USD pricing depends on material specification, theming package, import/export terms, scope of installation - get a project-specific quotation by contacting us. Different manufacturers use different part designation; corresponding geometric shapes are not substation free.
Spiral Slides — Why Most FEC Operators Choose Them First
The true helical elbow is housed in a commercial spiral slide creates a much more smooth riding experience, eliminating the speed spikes that not only create rider injury claims, but also make operators apprehensive. For projects that anticipate more than 200 rides per day per slide, we mount the HDPE rotomolded bed on a stainless-steel center column.
Wave Slides — Multi-Lane Throughput
Wave beds consist of two to four parallel lanes, reducing queue time within peak-traffic windows in malls and entertainment complexes. The rhythm of acceleration, plateau and acceleration—ebbs and flows in a wave—gives the wave slide social-content responsiveness it needs to become a repeated VISIT experience.
Hump Slides — Tightest Footprint
Corner activations or kiosk-scale are cases when you only had 4-5 m of floor length and hump slides can give you the whole ride experience while maintaining fall-zone compliance.
Tube Slides — Compliance-First Design
A fully enclosed commercial tube slide takes comprehensive rider coverage, say-a longer fall-zone calculation, and alleviates the line-of-sight liability of the deck surrounding it. Tube geometry provides stainless-steel with the home-field advantage- section service intervals extend to 36 months in landings with active use.
Engineered to ASTM F1487 / EN 1176-3 / CE / ISO 9001
Buyers have three questions about Chinese manufactured indoor playground equipment: 'Are the certifications genuine? Do they agree with this slide we are quoting? Will my insurance company accept them?' Didi responds 'Yes' to all three with 5 active certifications and clause-level engineering against the two governing slide standards.
ISO 9001
Quality management system
EN 1176
Playground equipment safety
AS 4685.1
AU/NZ playground standard
CE
European conformity
ASTM F381-16
Trampoline product line
EN 1176-3:2017 — Slides
Europeapsha 1,000 mm free fall height restriction on slides is specified at all access stands (Platforms etc), with a limitation to 3 m total free fall height in any playground - (Higher sliding surface heights need a little extra. ), and 1 m high platforms need edge protection. Thatapsha we design to these clauses (And in the case of every spiral, wave or tube line heha within playgrounds - guardrail height at the minimum allowed 700 mmapha (Protecting a 600 mm lid above the guardrail much cheaper thatabutapha anyhow).
ASTM F1487-25 — Public Use Playground Equipment
The current US standard, updated in 2025, calls for a maximum slide ramp height of 11 inches (28 cm) for slides under 4 ft (1.2 m), and a maximum landing height of 7-15 inches (18-38 cm) for taller slides. Access-zone openings can be no wider then 1.75 inches (45 mm) unless the opening height is less than 1 inch. Every Didi slide is shipped with the geometry compliance sheet which addresses both clauses.
Industry Applications — Specs by Venue Type
At various venue types, the priorities for slide selection change dramatically. Shopping mall play zone has throughput maximization at queues and on-brand forced photo ops; hotel kids club has floor-area optimization and on-brand forcing fit to hotel branding; kindergarten has EN 1176 optimization and age-2-5 playground footprint constraints. Here is the venue-specification map that we use to ground RFQ discussions.

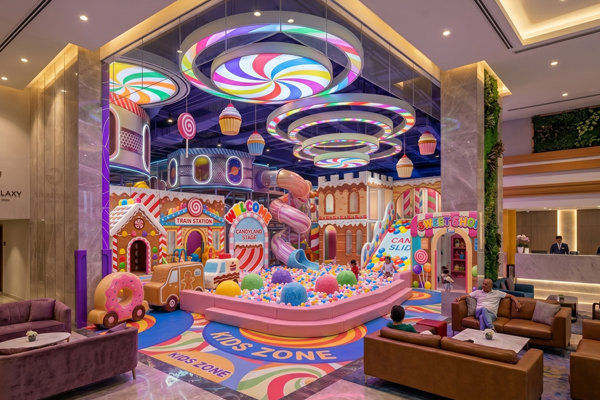

Shopping Malls & Mixed-Use Complexes
Recommended mix:
Combo Spiral centerpiece + Wave (multi-lane throughput) + Tube on the perimeter.
Compliance focus:
ASTM F1487-25 plus local fire and egress codes.
Theme angle:
high-visibility centerpiece engineered to drive foot traffic and brand co-marketing photo moments.
Footprint 200-500 m ref: France 2024 280 m spiral+tube combo

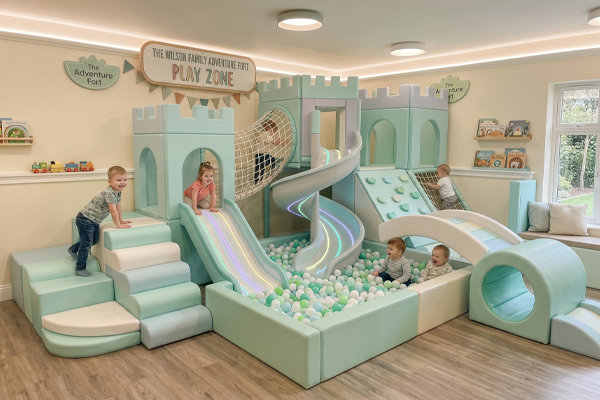

Family Entertainment Centers (FECs)
Recommended mix:
Multi-lane Wave for queue throughput, Combo Spiral as Instagram anchor, plus 2 toddler open-beds for proper age zoning.
Compliance focus:
ASTM F1487-25 plus insurance audit pre-clearance.
Theme angle:
ticketed attraction and repeat-visit driver across a 2-12 age envelope.
Footprint 300-800 m ref: Mexico 2024 450 m wave+combo spiral

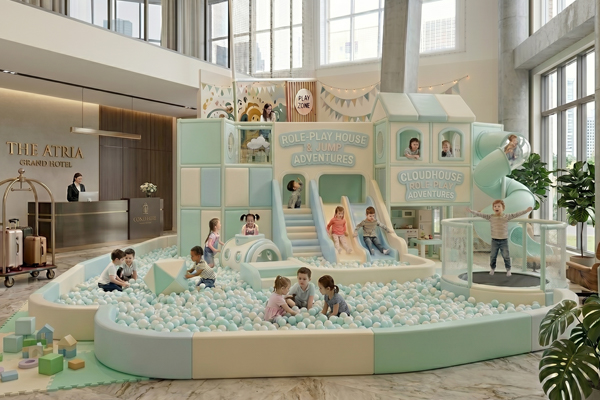

Hotels & Resort Kids Clubs
Recommended mix:
Open-bed + soft play slide cluster (gentle profile, ages 2-8) sized for indoor square-footage efficiency.
Compliance focus:
EN 1176-1 plus brand-property liability.
Theme angle:
family-attraction marketing and premium aesthetic that aligns with the hotel master design.
Footprint 100-250 m ref: Sri Lanka 2023 180 m open-bed cluster

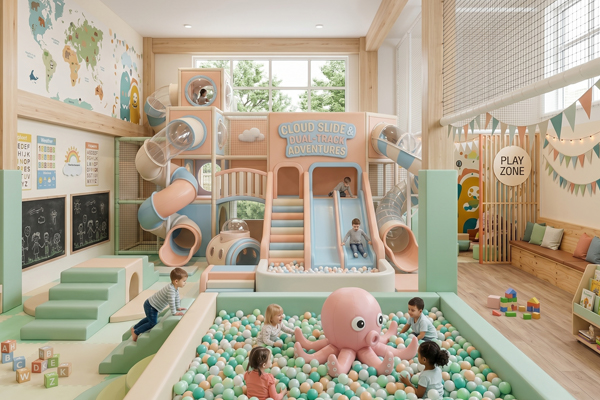

Kindergartens & Daycares
Recommended mix:
Open Bed + Curved (L/J) under strict ages-2-5 zoning.
Compliance focus:
EN 1176-3 free-fall 1 m plus EN 1176-1 small-parts entrapment provisions.
Theme angle:
educational color schemes such as our macaron pastel palette and role-play scenario sets.
Footprint 80-200 m ref: Poland 2024 120 m custom-themed
Custom Manufacturing & Procurement Guide
Didi runs a single turnkey path: design consultation 3D rendering manufacturing packing and freight on-site installation after-sales. There is no outside fabrication subcontract on the slide structure itself, which is why our lead times do not lengthen for custom themes.
Lead Time
4–8 weeksStandard config to door, before freight
MOQ
Project-basedNo fixed unit MOQ; quoted per layout
OEM
FullLogo, theme, brand colors, custom geometry
Shipping
40+ countriesFOB Guangzhou or door-delivered with installation
What Sits Behind the Project Numbers
The infrastructure backing every order: a 280,000 m Guangzhou facility, a 200+ engineering and production team, and a vertically integrated tooling line that includes laser tube cutting, robotic welding, and HDPE rotomolding. Investors who walk our factory leave with one clear impression - the structural backbone of every slide is welded under the same roof that designs the theme above it.
"We test every slide bed against EN 1176-3 fall provisions before it leaves the floor - and I personally approved the supplier policy that no custom theme adds a single day to baseline lead time. Investors lose openings, not just margins, when slides slip schedule."
— Ms. Cherry, CEO and Co-Founder, Guangzhou Didi Land
Indoor Playground Slide Engineering Tools
Slide Type Selector
Configure the optimal slide type based on precise site dimensions and target demographics. A technical planning tool engineered for B2B space optimization and commercial concept design.
Access Tool
Fall Zone Calculator
Accurately compute safety surfacing requirements and critical fall zones. Ensure your indoor play structures strictly comply with international commercial safety and engineering standards.
Launch Calculator
Indoor Playground Slides — Buyer FAQ
How much does a commercial indoor playground slide cost?
Slide pricing is project-based, not unit-based. The drivers are slide type and height, material grade (HDPE rotomolded vs FRP vs stainless steel), custom theming scope, freight Incoterm, and whether you contract installation. Most FEC orders fall into Tier S, M, or L brackets — share your floor plan and we return a tier-mapped quotation within 3–5 business days.
What is the lead time for custom commercial slides shipped from China?
Standard layout ships 4–8 weeks from order confirmation to door, before sea freight. Custom theming, OEM color matching, and brand-specific geometry do not extend baseline lead time because design and tooling sit inside the same Guangzhou facility — no external fabrication handoff.
Are Didi slides certified to ASTM F1487, EN 1176-3, and CE?
Didi holds active ISO 9001, EN 1176, AS 4685.1, ASTM F381-16, and CE certifications. Slide product lines are engineered to ASTM F1487-25 and EN 1176-3:2017 specifications and ship with a clause-level geometry compliance sheet. We provide certificate copies pre-purchase for your insurance underwriter or municipal procurement team.
What is the maximum height for indoor commercial slides? What ceiling clearance do I need?
Slide free-fall height is capped at 3 m by EN 1176-3:2017, and any access platform contributing to free fall is limited to 1 m. Practically, ceiling clearance of 3.5 m supports spiral and tube layouts; 4 m is required for combo-spiral towers. Our Decision Matrix lists the floor-to-top height and ceiling minimum for each slide type.
Spiral vs wave slide — which suits a 5,000 sqft FEC?
For 5,000 sqft (≈465 m²) the typical mix is one combo spiral as a centerpiece, one wave slide for multi-lane throughput, and two open-bed or hump slides for the 4–8 age zone. Total slide footprint averages 12–15% of usable area, leaving room for ball pit, soft-play structures, and queue circulation.
Can you match our brand colors and project theme?
Yes. OEM is the default service path, not the upgrade path. Brand colors, logos, themed elements, and full geometric customization are quoted at the same lead time as our standard catalog. Theme libraries available on request — ocean, jungle, candy, space, macaron pastel, and FEC-specific custom themes are all in active production.
Do you provide installation services worldwide?
Equipment ships to 40+ countries with documented project history in France, India, Sri Lanka, South Africa, Mexico, Malaysia, and Poland. On-site installation is offered as a turnkey add-on for North America, Europe, the Middle East, and Southeast Asia — local supervision plus client-side rigging crew is the standard delivery model.
HDPE vs fiberglass vs stainless steel — which is safest and most durable?
HDPE rotomolded slides give the lowest first-cost and the smoothest impact-rated ride bed; service life under continuous indoor use runs 8–12 years. FRP fiberglass holds heat better and offers more theme flexibility at 10–15 year service life. Stainless steel slides reach 15–20 years (industry estimate) and are the right call for high-traffic, long-tenancy installations where lifecycle TCO outweighs first cost.
