Indoor Playground Floor Plans: 12 Layout Templates for FEC, Mall & Daycare Builds

Updated June 2026 · Reviewed by the Guangzhou Didi Land Amusement Equipment Co., Ltd. design & engineering team.

An indoor playground design layout is the floor plan that divides a commercial play space into functional zones — entry, toddler, active play, quiet/sensory, party, and supervision/café — sized so 60–70% of the floor stays usable for play. The right floor plan balances capacity, sightlines, safety clearances, and revenue flow for your venue type and square footage. This guide give you 12 floor plan templates for FEC, mall, and daycare builds, plus the sizing, zoning, and circulation rules behind them. Across our 600+ indoor playground installations in 40+ countries, the layout decided before any equipment ships is the one that decides whether a space earns or stalls.

The Anatomy of an Indoor Playground Floor Plan: The 6-Zone Backbone

Before you order even one rope or frame, an indoor playground floor plan organizes the space into six functional zones. This structure, the 6-Zone Floor Plan Backbone, is the order any good layout gets drawn in: entry/check-in, toddler, active play, quiet/sensory, party rooms, and supervision/café, and each zone has its own footprint share, adjacency rule, and job. Apply the Backbone before you select equipment and the rest fall into place; do it out of order and you pay to move walls.

You design zones first and add equipment later because supervision and flow depend on it. Active play is where most of the physical activity concentrates, so that zone need the clearest sightlines of all. Because the U.S. Consumer Product Safety Commission’s Public Playground Safety Handbook stresses that supervising adults must be able to see every play area, the supervision/café zone has to look into the toddler and active zones, not away from them. In practice, six-zone plans leave roughly 60–70% of the gross floor as usable play space, with the rest going to reception, restrooms, party rooms, and circulation. As a working split, the toddler zone runs 15–25% of the play area, the main structure 35–45%, the supervision/café 10–15%, and the quiet/sensory retreat 5–10% — ratios that hold from a 400 sq ft daycare room up to a 12,000 sq ft anchor.

12 Indoor Playground Floor Plan Templates by Venue and Footprint

The most effective starting place for planning your kids indoor playground’s floor layout is by adapting a known working plan archetype.

Our 12-Template Indoor Playground Floor Plan Library gives venue-by-footprint starting points, distilled from Didi Land projects across family entertainment centers (FEC), shopping malls, and daycare and childcare builds. Below are suggested capacities, circulation schemes, floor sizes and the application venue to each template-all based on our proprietary space-planning principles. The capacity numbers are only recommendations; always verify against your local occupant load limit before ordering.

Picking a template is faster than it looks. On a recent project, a first-time operator walked in with a 1,500 sq ft inline mall storefront and a plan to cram in a 6,000 sq ft FEC’s worth of structures. We started from Template 6 instead: entry up front, a single deep-play loop, and a café ledge on the sightline. The footprint held about 35 children comfortably, the parents could see every level from one bench, and the build came in months ahead of the over-scoped version the operator first sketched. The template did not limit the venue — it kept the venue from fighting its own square footage.

*Recommended maximum simultaneous children assuming the application of an appropriate local occupant-load factor as explained under Sizing and Scaling rules.

How Much Space Do You Need? Sizing a Layout by Square Footage and Capacity

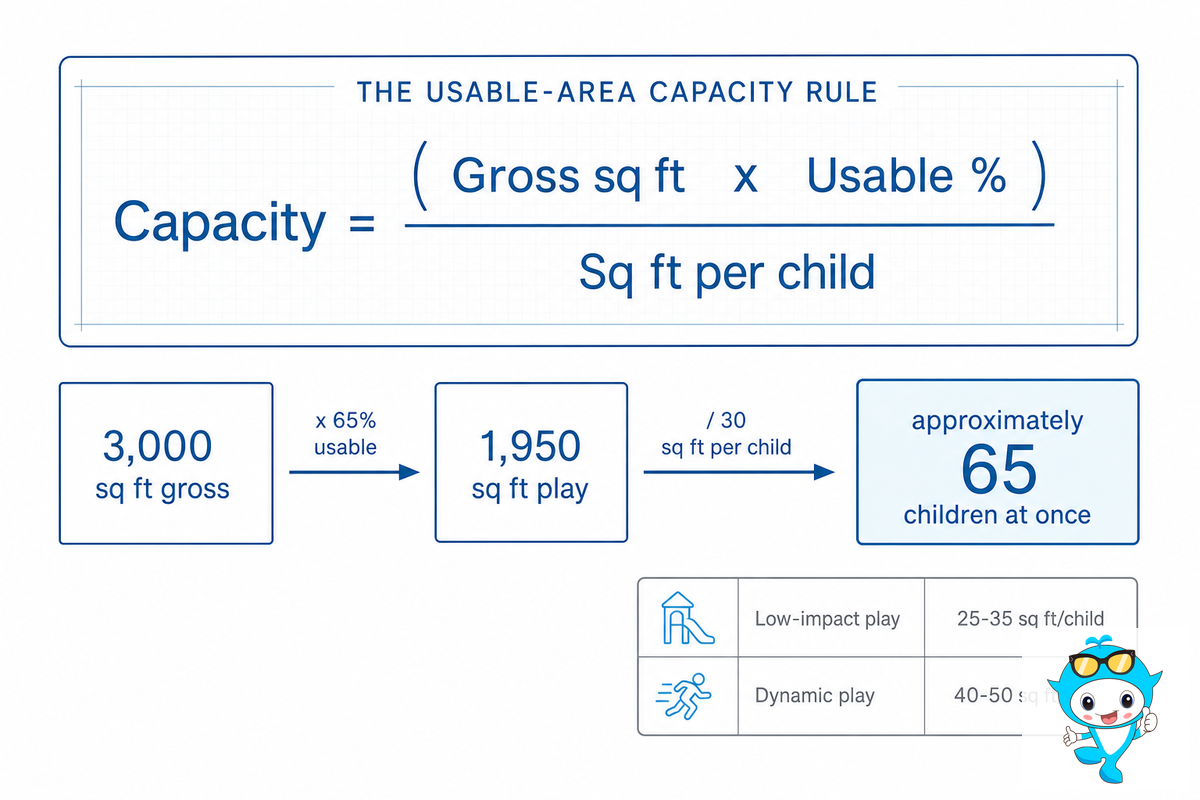

You size an indoor playground for capacity with one formula, the Usable-Area Capacity Rule: usable area divided by square feet per child. Plan 25–35 sq ft per child for low-impact play and 40–50 sq ft for dynamic zones, applied to the usable 60–70% of your gross floor. That converts a raw footprint into a real number of simultaneous children, and it is the single most useful calculation in the whole plan:

And that square footage per child isn’t a single point value. Industry space-planning standards allocate around 25-35 sq ft per child for low-impact zones (such as soft play and ball pits), and 40-50 sq ft per child for dynamic zones (such as climbing walls, obstacle courses, and slides) (industry benchmark data – treat as directional and double-check with your designer). Then double-check with your occupant load, which the building code (IBC) establishes by occupancy classification – so the limiting factor is dependent on how your zone is classified. As an example, in a 3,000 sq ft zone with a daycare factor of 1/35 sq ft (one person per 35 sq ft), the occupant load is approximately 86, but the number of exits can limit egress density to less than 20 sq ft per person. Always verify your classification and required exit count with a local building department, because the latter can limit capacity before the former.

Zoning by Age: Separating Toddler, Preschool, and Big-Kid Play

The single most common mistake that leads to toddler zones being under-frequented is making them accessible to high-traffic zones with older children. Implementing age-zoning removes this issue. Because participants naturally segregate into toddlers (about 1-2 years old), preschoolers (about 2-5), and school-age (about 5-14), each group seeks distinct equipment, appropriate fall heights, and a minimum of overlaps. There is also a standards boundary worth drawing into the plan: the soft-contained indoor play in most commercial playgrounds follows ASTM F1918, traditional public-use equipment for ages 2–12 follows ASTM F1487, and equipment for 6-to-23-month children falls under a separate standard (ASTM F2373). Because the governing spec changes with both equipment type and age band, your toddler, soft-play, and big-kid zones should be drawn, labeled, and signed as their own areas.

Toddler zones: Use 15-25 percent of the floor plan (play area). Ensure they’re situated behind a low boundary, and are completely visible from a table in the cafe–toddlers will come to parents as long as they can see them, so a hidden toddler is an unplayed toddler. Keep this designated low-activity zone away from primary routes to other sections. Separating different age groups this way also keeps older kids from dominating climbing structures built for children of all ages.

Designing for Flow and Supervision: Circulation Loops and Sightlines

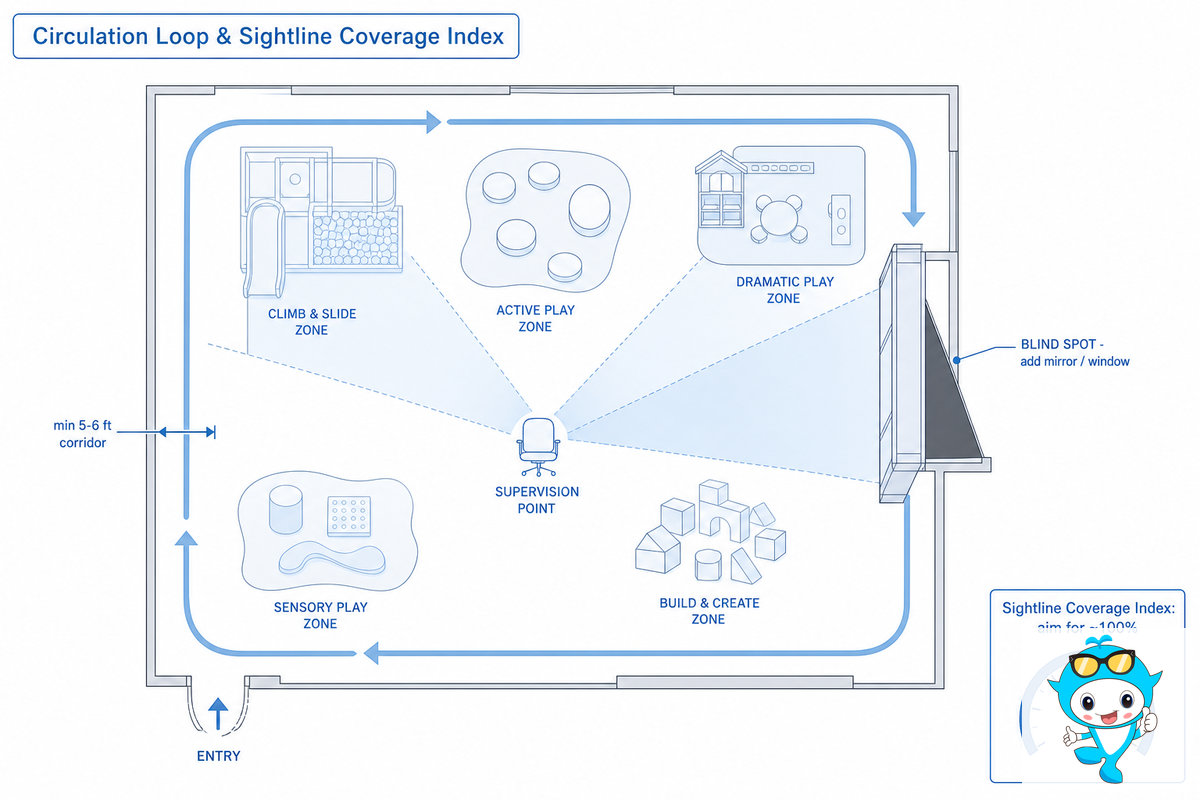

Two kinds of systems really do the work of the play area in a modern indoor play space:circulation, or the way people move through it, and lines of sight, how the spaces are viewed by staff and parents. Three patterns address just about everything we design for circulation: the circle, which leads back to the entry; the backbone, where other spaces hang off a central path; and the spokes, with a central hub. Whatever your choice, make your main hallways at least 5 or 6 feet wide in high-activity buildings. Anything narrower forces hand-policing for flow.

For supervision, plan to a Sightline Coverage Indexthe share of the play area directly visible from the main supervision point (the café seating or entry desk) — and push it as close to 100% as the structures allow. Treat any blind corner as a design defect, not a detail. The CPSC Public Playground Safety Handbook recognizes adult supervision as a core layer of safety, and your floor plan will either support it or quietly undermine it.

“On site reviews, the layouts that fail are rarely short of equipment, they are short of sightlines. When a parent has to stand up to find their child, the visit gets shorter and the spend gets smaller. We design the seated view first, then build the play around it.”

Didi Land Design & Engineering Team

Adding another floor doesn’t automatically create another safety layer, and enclosing structure adds a safety complexity that must be managed. As you gain vertical levels on any enclosed space, be prepared to increase adequate-supervision ratios or the density of viewing windows, or add mirrors for blind spots — no more and no less, not instead of either. No matter what the plan suggest, an enclosed space doesn’t yet translate to supervised space.

Compliance Built Into the Plan: Use-Zone Clearances and Accessible Routes

Safety considerations are a layout input, not a post-construction checklist. Save it on your schematic plan before selecting equipment, because accessibility and safety have a claim on square footage you’ll never get back. Two standards dictate most of it here.Make sure your standards edition is the latest.

These clearances decide the plan, not the other way around. On one 6,000 sq ft destination FEC, the operator had specified a tall composite tower with several decks above 30 inches. When we laid in the 9-foot use zone that surfaces above that height require, plus the protective surfacing under each slide exit, the queue space the operator had penciled in simply vanished. Reserving the clearance first — before the tower was finalized — let us shrink the deck count by one and recover a clean entry queue, rather than discovering the conflict after the structure shipped.

Cite the live edition, and the right standard for your equipment type. Most commercial indoor playgrounds are soft-contained, so ASTM F1918which the CPSC handbook explicitly does not cover, is the controlling spec, with its own access, egress, and evacuation rules. Traditional public-use equipment follows ASTM F1487 in its current F1487-25 revision, approved in April 2025 and superseding F1487-21, with a new definition for “fully enclosed structure” and updated handrail heights for wheelchair-accessible ramps, directly relevant to multi-level indoor structures. Accessible routing comes from the U.S. Access Board’s play-area guidelines, where the count of elevated components, not just route width, sets your ramp and transfer obligations. For European-market projects, plan to EN 1176-1:2018+A1:2024, and treat a quiet, wheelchair- and stroller-friendly sensory retreat as a zone to reserve now rather than retrofit later.

Laying Out for Revenue: Party Rooms, Café Sightlines, and Retail Adjacency

A floor plan is also a revenue instrument. The order in which a visitor meet your zones is the Spend-Path Layout Sequence: entry → play → party → café → retail → exit. Each handoff is a chance to turn dwell time into spend, and placement decides whether it happens. Party rooms are a top profit driver, so give them their own entrance and a window onto the play floor, never route open-play customers through a private party. Put the café on the main sightline so seated parents linger and order, and place impulse retail or a redemption counter near the exit.

Space efficiency is the multiplier. Trade analysis from Recreation Management notes that about 70% of indoor attractions are installed in family entertainment centers, often layered over arcade or laser-tag areas precisely so they don’t consume revenue floor. Industry FEC benchmarks put revenue around $100 per square foot annually, with strong operators well above that, figures that are directional and depend heavily on attraction mix and food-and-beverage. The layout lesson is blunt: every square foot carries rent, HVAC, and insurance, so each one should either generate play value or sell something. This is exactly the thinking we bring to a revenue-driven FEC playground design.

From Rough Sketch to Buildable Plan: The Layout Design Process

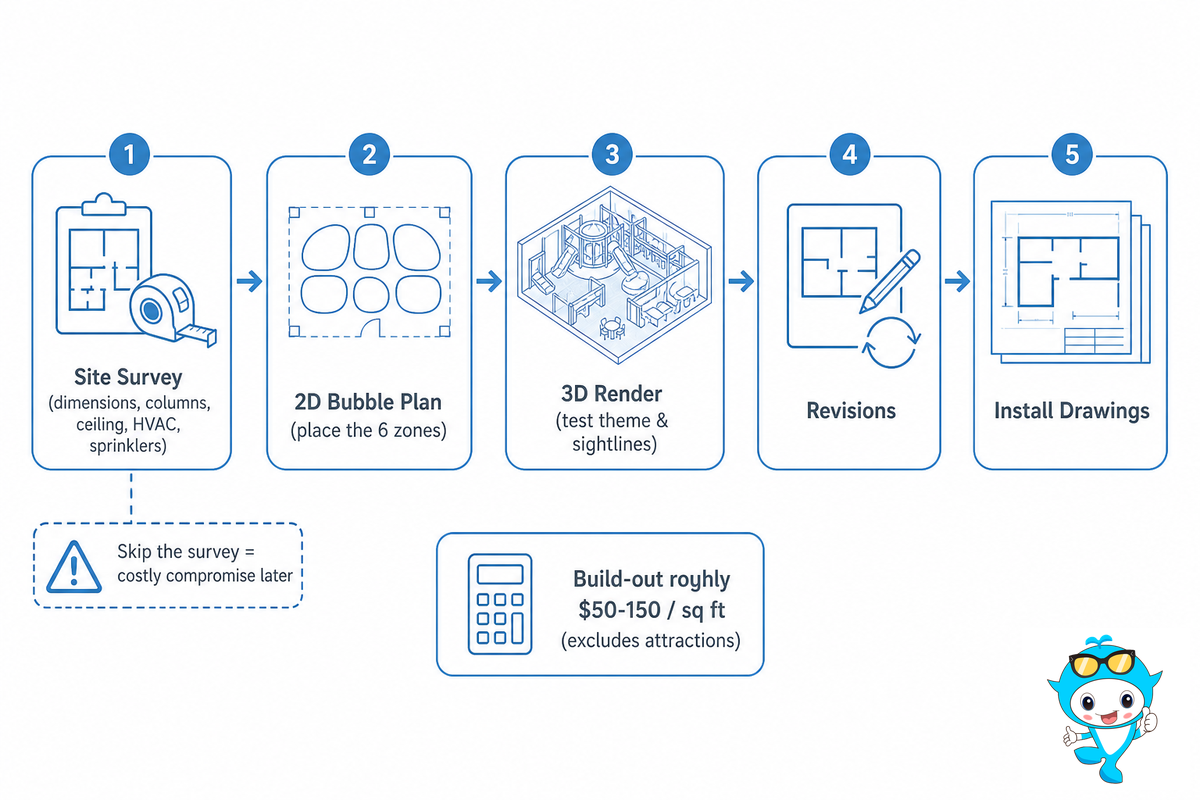

A buildable indoor playground design layout — a customizable, modular plan you can actually construct, not just a drawing — comes together in five phases of designing and building: a site survey (actual dimensions, columns, ceiling height, HVAC and sprinkler locations), a 2D bubble plan that places the six zones, a 3D render that tests theme and sightlines, revisions, and finally the install drawings your builder will work from. Most plans fall apart when builders ignore the survey- discovering a column, spot a low ceiling soffit after the equipment has been ordered means shoe-horning in a compromise that will echo for the life of the space. Done right, these five phases create a play space that balances fun and safety from the first day it opens.

How much does indoor playground design and layout cost?

Design is usually bundled into a manufacturer’s equipment quote, while independent studios bill it separately. The build-out is the larger number: industry budgeting guides put commercial fit-out at roughly $50–150 per square foot, a range that generally excludes the play attractions themselves, the gap that catches equipment-only investors. See our indoor playground equipment cost guide for the full breakdown. When you’re ready to turn a sketch into a plan, our team manage the survey, 2D, and 3D rendering process in-house.

7 Indoor Playground Layout Mistakes That Waste Square Footage and Revenue

Most layout failures are predictable. Audit any draft plan against these seven before it goes to build, each one quietly cost either usable square footage or revenue, and several trace back to the supervision and sightline gaps the CPSC Public Playground Safety Handbook warns about.

• ✔Dead-end layout. Dead ends interrupt play flow and waste floor; a loop keeps children circulating without adding area.
• ✔Single choke-point entry. One narrow door for entry, exit, and queue creates peak-time bottlenecks and an egress risk.
• ✔Blind-spot multi-level. Tall enclosed structures with no viewing windows hide children; raise supervision and add sightlines.
• ✔Undersized or buried toddler zone. A corner toddler area parents can’t see goes unused; give it 15–25% and a clear sightline.
• ✔No queue or stroller parking. Missing waiting and stroller space pushes congestion onto the play floor.
• ✔Ignored ceiling height. Planning multi-level play without confirming 12–16 ft clear height caps the structure after the lease is signed.
• ✔Under-budgeted surfacing area. Fall-zone protective surfacing is floor area; leaving it out of the plan forces last-minute compression of play.

Where Indoor Playground Layout Design Is Heading in 2026

The clearest shift for anyone planning a build now is that inclusive and sensory-inclusive zoning has moved from a premium add-on to a baseline expectation. Designing a 2026 layout without a dedicated sensory retreat and genuinely accessible routing increasingly means designing in a retrofit cost, trade coverage from outlets like Recreation Management now frames sensory-friendly zones as a differentiator, not an option.

Two more drivers follow. First, experiential retail is pulling indoor playgrounds into malls as foot-traffic anchors, which rewards layouts that read clearly from a storefront and convert passers-by. Second, rising commercial rents reward vertical play, multi-level and wall-mounted structures that raise capacity per square foot in compact footprints.

In commercial practice: if you’re laying out a plan later this year, escrow the sensory zone and accessible route as first-class zones, design the mall’s storefront sightline for a family-entertainment market, and formulate the superstructure to expand vertically rather than laterally. (The family-entertainment market is huge and booming, but wait until later to derive market-size numbers, the above design decisions are what a single build in reality actually depends on.)
